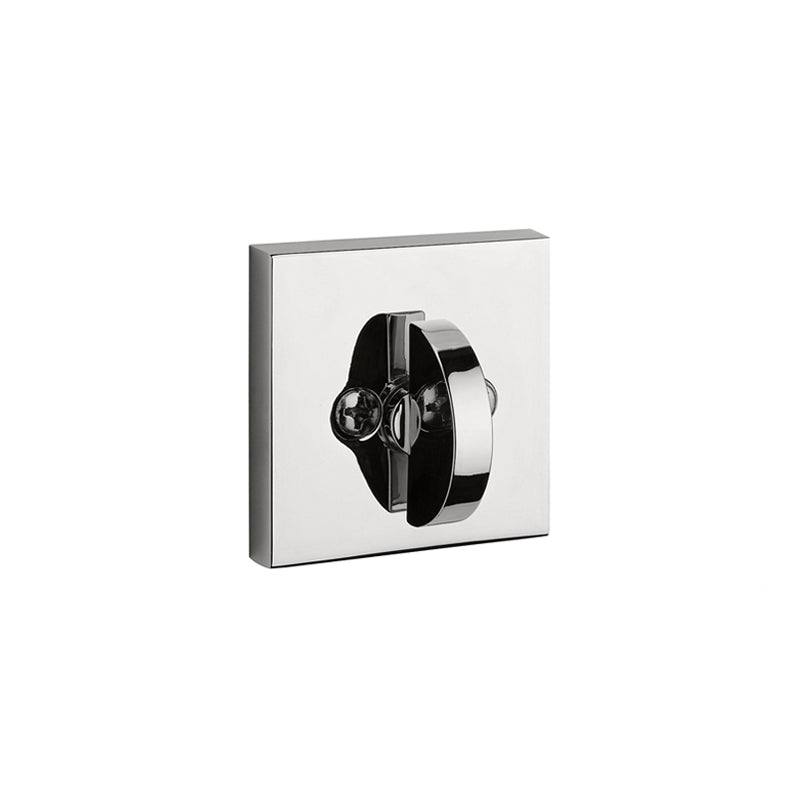

Baldwin Reserve Contemporary Square Patio Deadbolt in Polished Nickel finish
Not all finish and hardware combinations are shown. Images may represent style only.
Baldwin Reserve Contemporary Square Patio Deadbolt in Polished Nickel finish
Not all finish and hardware combinations are shown. Images may represent style only.
Baldwin

Contemporary Square Deadbolt - Patio

$53.13

☆ Product Overview

PRODUCT DESCRIPTION

Baldwin Contemporary Square Deadbolt - Patio

About this product:

From the Baldwin Reserve Contemporary collection, the Contemporary Square patio deadbolt is made from solid brass and available in an array of popular finishes. Baldwin offers a high degree of customization, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Split finish and split style sets are also available. Give us a call to design your custom set.

All Baldwin items are made to order and will be ready to ship in 7-10 business days. Please note that the estimated delivery times do not include the product handling times. If you are ordering products that have different handling times, the order will ship complete based on the longest handling time. If you want your products to ship separately, please contact us.

 Product Features:
  • Baldwin Contemporary Square product page
  • Solid brass construction for durability and quality
  • Complete set includes all necessary mounting hardware and accessories
  • Easy installation designed for 1-7/8" cross bore door prep and 1" edge bore.
  • Solid brass latch with hardened steel roll pin for additional strength and security
  • Exposed mounting screws on interior rosette
  • Available finishes: Lifetime Satin Brass (044), Lifetime Polished Nickel (055), Venetian Bronze (112), Satin Nickel (150), Satin Black (190), Polished Chrome (260)
  • Baldwin offers a Limited Warranty to the original user
  • California Residents Proposition 65 Warning



PRODUCT SPECS

Baldwin Contemporary Square Deadbolt - Patio

About this product:

Patio Deadbolt Graphic

The Contemporary Square patio deadbolt features a solid brass latch with a hardened steel roll pin for additional strength and security. The deadbolt is retracted by a thumbturn on the inside. The Contemporary Square deadbolt is also available in the single cylinder (locks/unlocks with a key on the outside and a thumbturn on the inside) and double cylinder (locks/unlocks with a key on the outside and inside of the door) functions. These items are listed separately.

 Product Specs:
  • Baldwin Deadbolt Specification Sheet - see deadbolt "CSD"
  • Patio Deadbolt Specification Sheet
  • Cross bore: 1-7/8"
  • Edge bore: 1"
  • Door Thickness: 1-3/8" to 2-1/2"
  • Backset: Adjustable to 2-3/8" (60mm) or 2-3/4" (70mm)
  • Latch: 6 Way adjustable (6L), includes square and radius faceplates. 20-minute certified UL option available
  • Features 1" throw brass bolt latch
  • Strike: Dual strike (DS) includes both square and radius corner. Full Lip Strike (FS) is also an option.
  • Tested to exceed ANSI/BHMA Grade 2 security



INSTALLATION

Baldwin Contemporary Square Deadbolt - Patio

About this product:

The Contemporary Square deadbolt is designed for easy installation using 1-7/8" cross bore and 1" edge bore door prep.

 Product Installation:



ORDER HELP

Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. Baldwin also offers a high degree of customization, including split finish and split style options, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Please feel free to contact us for assistance. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" tab above for more information.

 Order Help:
