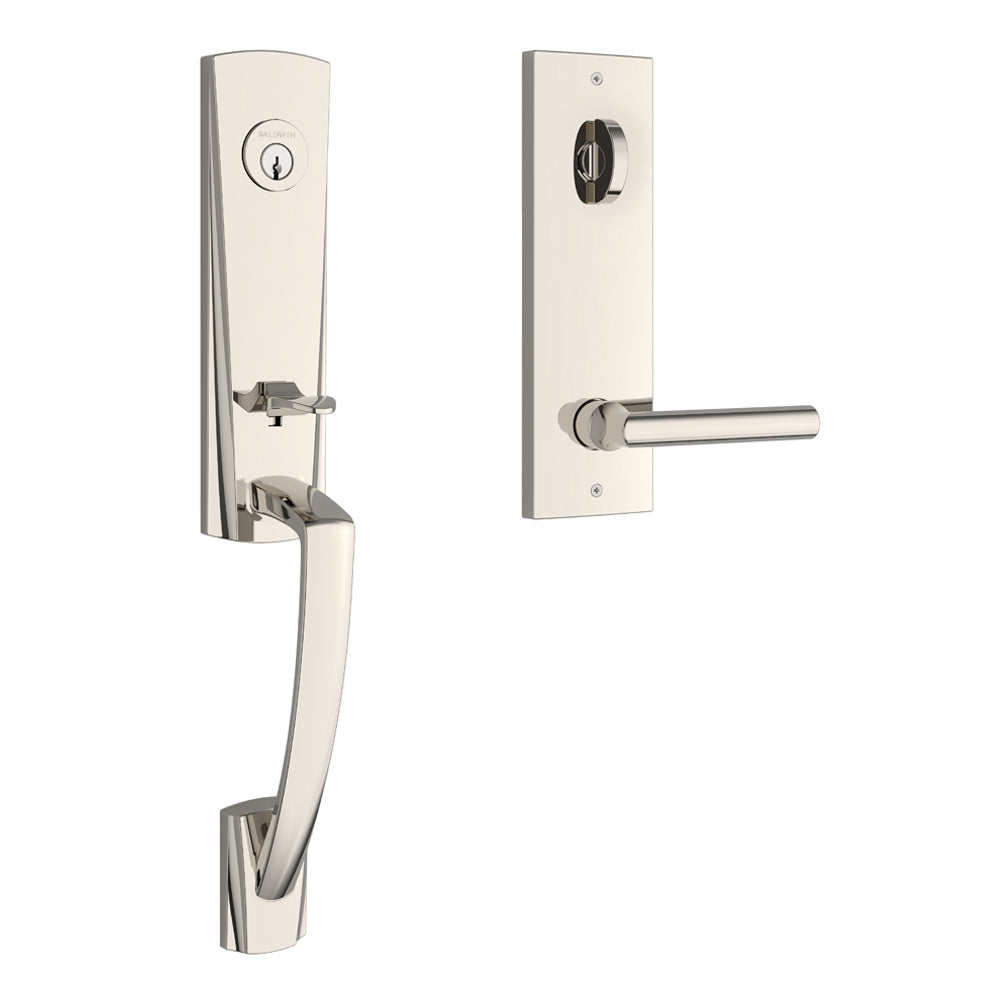

Baldwin Miami Entry Handleset - Emergency Egress

$538.90

PRODUCT DESCRIPTION

Baldwin Miami Entry Handleset - Emergency Egress

About this product:

From the Baldwin Reserve Contemporary collection, the Miami emergency egress handleset is made from solid brass and available in an array of popular finishes. Baldwin offers a high degree of customization, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Split finish and split style sets are also available. Give us a call to design your custom set.

All Baldwin items are made to order and will be ready to ship in 7-10 business days. Please note that the estimated delivery times do not include the product handling times. If you are ordering products that have different handling times, the order will ship complete based on the longest handling time. If you want your products to ship separately, please contact us.

 Product Features:
  • Baldwin Miami product page
  • Solid brass construction for durability and quality
  • Complete set includes all necessary mounting hardware and accessories
  • Features an interconnect device that makes the deadbolt and door latch open from the inside with one single action
  • Easy installation designed for standard 2-1/8" cross bore door prep and 1" edge bore for both grip and deadbolt latch.
  • Solid brass deadbolt latch with hardened steel roll pin for additional strength and security
  • Features the traditional Baldwin pin and tumbler C-keyway
  • SmartKey Re-key Technology optional
  • Features easy-to-install spring assist for optimal operational strength
  • Exposed mounting screws on interior rosette
  • Available finishes: Lifetime Satin Brass (044), Lifetime Polished Nickel (055), Venetian Bronze (112), Satin Nickel (150), Satin Black (190), Polished Chrome (260)
  • Baldwin offers a Limited Warranty to the original user
  • California Residents Proposition 65 Warning



PRODUCT SPECS

Baldwin Miami Entry Handleset - Emergency Egress

About this product:

Baldwin Emergency Egress Function

The Miami emergency egress handleset features a locking deadbolt and a non-locking latch. The deadbolt and latch are linked with an interconnect device. The interconnect device makes the deadbolt and latch open from the inside with one single action. The Miami handleset is also available in the dummy (used on the fixed door on a set of double doors) function. This item is listed separately.

 Product Specs:
  • Baldwin Exterior Escutcheon Specification Sheet - see 3/4 escutcheon handleset "MIA"
  • Baldwin Interior Escutcheon Specification Sheet - see egress interior escutcheon "CQE"
  • Emergency Egress Handleset Specification Sheet
  • Cross bore: 2-1/8"
  • Edge bore: 1"
  • 5-1/2" center-to-center (c-to-c) tubular bore
  • Door Thickness: 1-3/4" to 2-1/2"
  • Cylinder: 5-pin C-Keyway. SmartKey Re-key Technology with KW1 keyway optional
  • Keyed Different (KD) orders will receive one set of 2 keys cut the same. Keyed Alike (KA) orders will receive one set of 4 keys cut the same
  • Backset: Adjustable to 2-3/8" (60mm) or 2-3/4" (70mm)
  • Latch: 6 Way adjustable (6L), includes square and radius faceplates. 20-minute certified UL option available
  • Deadbolt features 1" throw Brass bolt latch. Grip offers 1/2" passage/privacy function bolt
  • Strike: Dual strike (DS) includes both square and radius corner. Extended Lip strike shipped with all thick door locks (ES) (for doors 2" to 2-1/2" thick)
  • Tested to exceed ANSI/BHMA Grade 2 security



INSTALLATION

Baldwin Miami Entry Handleset - Emergency Egress

About this product:

The Miami handleset is designed for easy installation using standard 2-1/8" cross bore and 1" edge bore door prep.

 Product Installation:



ORDER HELP

Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. Baldwin also offers a high degree of customization, including split finish and split style options, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Please feel free to contact us for assistance. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" tab above for more information.

Keying information: If you want to order a set that will work with your existing key, it is important to order the same type of key cylinder, because the keys are not interchangeable. For example, a Schlage C key cannot fit into a Weiser WR5 key cylinder. In addition to matching the key cylinder type, you must also match the key code. If you need assistance in determining your key cylinder type or your key code please take your key to a locksmith or key copy center.

We also offer the option of ordering sets that are “keyed alike” or “keyed different”. “Keyed alike” means that all sets ordered together will operate with the same key. “Keyed different” means that each set ordered together will operate with its own unique key. If you are ordering multiple keyed products, such as two of the same product with different options or two different products, please include a note with any keying instructions on the Shopping Cart page.

 Order Help:



INSPIRATION

In need of some inspiration? Take a look at these links:

 Inspiration:
