Not all finish and hardware combinations are shown. Images may represent style only.

Baldwin Rustic Knob Set - Passage

$219.30

PRODUCT DESCRIPTION

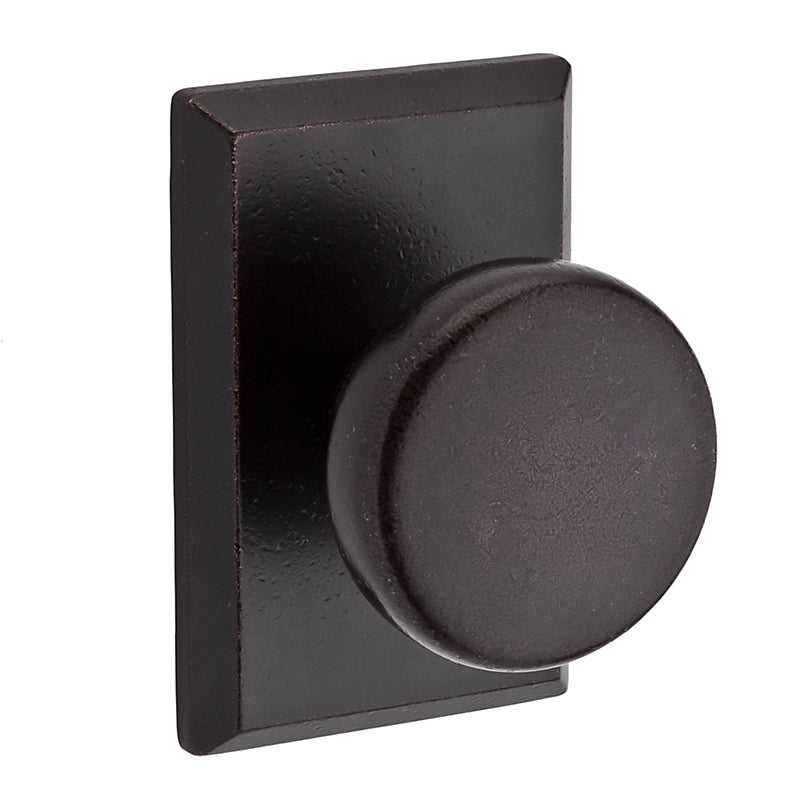

Baldwin Rustic Knob Set - Passage

About this product:

From the Baldwin Reserve Rustic collection, the Rustic knob set is made from solid brass and available in an array of popular finishes. Baldwin offers a high degree of customization, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Split finish and split style sets are also available. Give us a call to design your custom set.

All Baldwin items are made to order and will be ready to ship in 7-10 business days. Please note that the estimated delivery times do not include the product handling times. If you are ordering products that have different handling times, the order will ship complete based on the longest handling time. If you want your products to ship separately, please contact us.

 Product Features:
  • Baldwin Rustic product page
  • Solid brass construction for durability and quality
  • Complete set includes all necessary mounting hardware and accessories
  • Easy installation designed for standard 2-1/8" cross bore door prep and 1" edge bore for latch
  • Features easy-to-install spring assist for optimal operational strength
  • Exposed mounting screws on interior rosette
  • Available finishes: Dark Bronze (481), White Bronze (492)
  • Baldwin offers a Limited Warranty to the original user
  • California Residents Proposition 65 Warning



PRODUCT SPECS

Baldwin Rustic Knob Set - Passage

About this product:

Passage Lever Set Graphic

The Rustic passage knob set features a passage latch but contains no locking function. The passage latch is retracted by the motion of a lever. The Rustic knob is also available in the entry (locks/unlocks with a key on the outside and a push-button on the inside), privacy (locks/unlocks with a push-button on the interior and can be unlocked from the exterior with the emergency release), dummy (contains no latch or locking function) and half dummy (one sided with no latch or locking function) functions. These items are listed separately.

 Product Specs:
  • Baldwin Knob/Rosette Specification Sheet - see knob "RUS" and rosette "RAR" or "RSR"
  • Passage Lever/Knob Set Specification Sheet
  • Cross bore: 2-1/8"
  • Edge bore: 1"
  • Door Thickness: 1-3/8" to 2-1/2"
  • Backset: Adjustable to 2-3/8" (60mm) or 2-3/4" (70mm)
  • Latch: 6 Way adjustable (6L), includes square and radius faceplates. 20-minute certified UL option available
  • Strike: Dual strike (DS) includes both square and radius corner. Extended Lip strike shipped with all thick door locks (ES) (for doors 2" to 2-1/2" thick)
  • 1/2" latch bolt
  • Tested to exceed ANSI/BHMA Grade 2 security
  • Meets ADA requirements



INSTALLATION

Baldwin Rustic Knob Set - Passage

About this product:

The Rustic knob set is designed for easy installation using standard 2-1/8" cross bore and 1" edge bore door prep.

 Product Installation:
