Baldwin

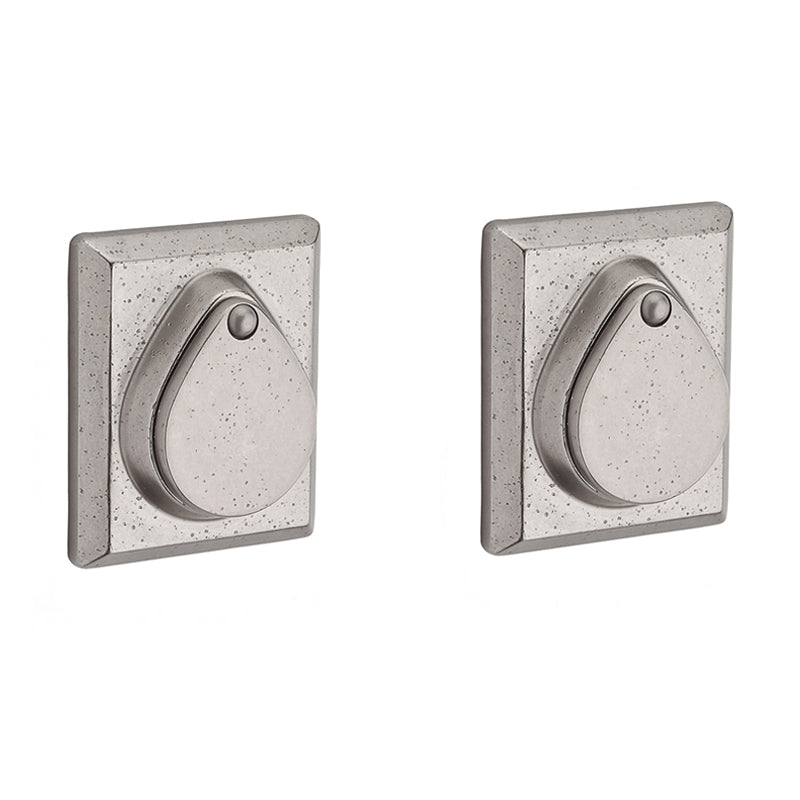

Rustic Square Deadbolt - Double Cylinder

$109.23

PRODUCT DESCRIPTION

Baldwin Rustic Square Deadbolt - Double Cylinder

About this product:

From the Baldwin Reserve Rustic collection, the Rustic Square double cylinder deadbolt is made from solid brass and available in two beautiful finishes. Baldwin offers a high degree of customization, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Split finish and split style sets are also available. Give us a call to design your custom set.

All Baldwin items are made to order and will be ready to ship in 7-10 business days. Please note that the estimated delivery times do not include the product handling times. If you are ordering products that have different handling times, the order will ship complete based on the longest handling time. If you want your products to ship separately, please contact us.

 Product Features:
  • Baldwin Rustic Square product page
  • Solid brass construction for durability and quality
  • Complete set includes all necessary mounting hardware and accessories
  • Easy installation designed for standard 2-1/8" cross bore door prep and 1" edge bore.
  • Solid brass latch with hardened steel roll pin for additional strength and security
  • Features the traditional Baldwin pin and tumbler C-keyway
  • SmartKey Re-key Technology optional
  • Features low profile cylinder projection
  • Exposed mounting screws on interior rosette
  • Available finishes: Dark Bronze (481), White Bronze (492)
  • Baldwin offers a Limited Warranty to the original user
  • California Residents Proposition 65 Warning



PRODUCT SPECS

Baldwin Rustic Square Deadbolt - Double Cylinder

About this product:

Double Cylinder Deadbolt Graphic

The Rustic Square double cylinder deadbolt features a solid brass latch with a hardened steel roll pin for additional strength and security. The deadbolt is retracted by both a key on the outside and on the inside. The Rustic Square deadbolt is also available in the single cylinder (locks/unlocks with a key on the outside and a thumbturn on the inside) and patio (locks/unlocks with a thumbturn on the inside only) functions. These items are listed separately.


 Product Specs:
  • Baldwin Deadbolt Specification Sheet - see deadbolt "RSD"
  • Double Cylinder Deadbolt Specification Sheet
  • Cross bore: 2-1/8"
  • Edge bore: 1"
  • Door Thickness: 1-3/4" to 2-1/2"
  • Cylinder: 5-pin C-Keyway. SmartKey Re-key Technology with KW1 keyway optional
  • Keyed Different (KD) orders will receive one set of 2 keys cut the same. Keyed Alike (KA) orders will receive one set of 4 keys cut the same
  • Backset: Adjustable to 2-3/8" (60mm) or 2-3/4" (70mm)
  • Latch: 6 Way adjustable (6L), includes square and radius faceplates. 20-minute certified UL option available
  • Features 1" throw brass bolt latch
  • Strike: Dual strike (DS) includes both square and radius corner. Full Lip Strike (FS) is also an option.
  • Tested to exceed ANSI/BHMA Grade 2 security



INSTALLATION

Baldwin Rustic Square Deadbolt - Double Cylinder

About this product:

The Rustic Square deadbolt is designed for easy installation using standard 2-1/8" cross bore and 1" edge bore door prep.

 Product Installation:



ORDER HELP

Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. Baldwin also offers a high degree of customization, including split finish and split style options, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Please feel free to contact us for assistance. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" tab above for more information.

Keying information: If you want to order a set that will work with your existing key, it is important to order the same type of key cylinder, because the keys are not interchangeable. For example, a Schlage C key cannot fit into a Weiser WR5 key cylinder. In addition to matching the key cylinder type, you must also match the key code. If you need assistance in determining your key cylinder type or your key code please take your key to a locksmith or key copy center.

We also offer the option of ordering sets that are “keyed alike” or “keyed different”. “Keyed alike” means that all sets ordered together will operate with the same key. “Keyed different” means that each set ordered together will operate with its own unique key. If you are ordering multiple keyed products, such as two of the same product with different options or two different products, please include a note with any keying instructions on the Shopping Cart page.
