Key Features

• Solid brass construction for lasting durability
• Equipped with an easy-to-install spring assist for optimal operational strength
• Features the traditional Baldwin pin and tumbler C-keyway

• Ease of mind - Baldwin offers a Limited Warranty to the original user
• Complete set includes all necessary mounting hardware and accessories

Technical Details

• Available finishes
  • Lifetime (PVD) Polished Brass (003)
  • Non-lacquered Brass (031)
  • Lifetime (PVD) Satin Brass (044)
  • Lifetime (PVD) Polished Nickel (055)
  • Venetian Bronze (112)
  • Satin Nickel (150)
  • Satin Black (190)
  • Polished Chrome (260)
• Easy installation
  • Designed for standard 2-1/8" cross bore door prep and 1" edge bore for latch

• Exposed mounting screws on interior rosette
• California Residents Proposition 65 Warning

Choose an entry knob when you need enhanced security and controlled access for doors like exterior entries, offices, or storage areas.

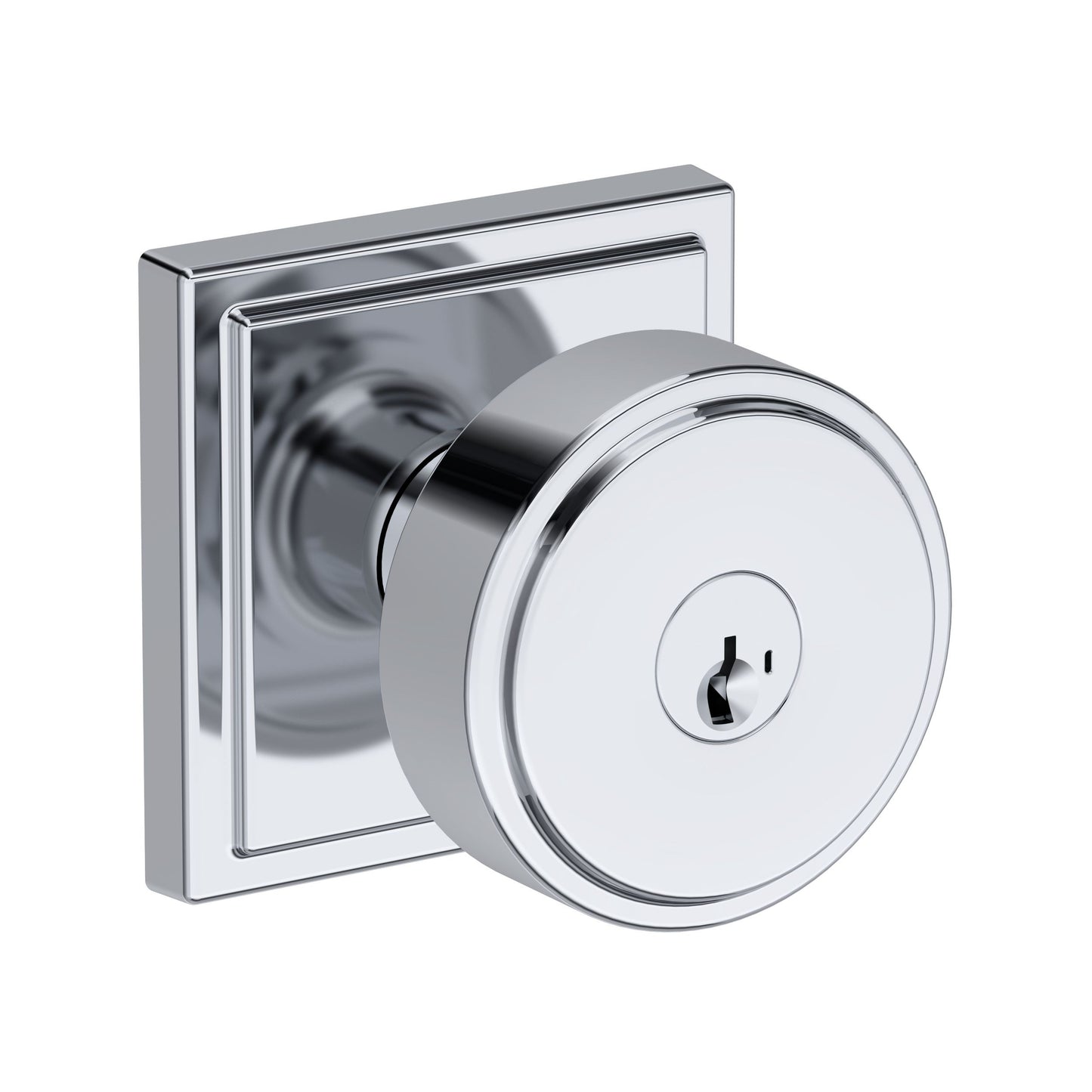

Unlike a privacy knob, which only locks from the inside, a passage knob, which never locks, or a dummy knob, which is purely decorative, a keyed entry knob uses a key on the exterior and a turn piece on the interior. This allows for secure locking from the outside while ensuring quick, convenient exit from the inside.

It’s the ideal choice when safety matters most—offering dependable security, flexibility, and peace of mind.

• Rosette Dimensions:



  Knob Dimensions:


• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Door Thickness: 1-3/8" to 2-1/2"
• Cylinder: 5-pin C-Keyway
• Backset: Adjustable to 2-3/8" (60mm) or 2-3/4" (70mm)
• Latch Bolt: 1/2"
• Latch Style: 6 Way adjustable (6L), includes square and radius faceplates. 20-minute certified UL option available
• Strike: Dual strike (DS) includes both square and radius corner. Extended Lip strike shipped with all thick door locks (ES)
• Security: Tested to exceed ANSI/BHMA Grade 2

• Installation Instructions
• Drilling Instructions

Ordering the correct hardware can be confusing — we’re here to help! Please contact us with any questions. Our Customer Service team is available by phone, email, or Live Chat Monday–Friday, 9AM–5PM EST. For additional details, see the "Support" tab above.

Keying Information

If you want your new hardware to work with your existing key, you must match two things:

1. Key cylinder type
   Key cylinder types are not interchangeable. For example, a Schlage C key will not work in a Weiser WR5 cylinder.
2. Key code
   Even if the cylinder type matches, the key code must also match for the key to work.

If you are unsure of your key type or code, we recommend taking your key to a locksmith or key copy center for identification.

Keying Options

• Keyed Alike – All sets ordered together will operate with the same key.
• Keyed Different – Each set ordered together will operate with its own unique key.

Have a project that requires unique or advanced customization? Schedule an appointment with our Hardware Concierge Service! Whether you're a homeowner or a business professional, we offer virtual appointments to simplify the process and guide you through even the most complex projects.

• Made to Order: All Baldwin items are custom made and typically ship within 7–10 business days.
• Handling Times: Delivery estimates do not include handling times. If your order includes products with different handling times, it will ship once all items are ready.
• Need items shipped separately? Please contact us to arrange split shipments.
