Not all finish and hardware combinations are shown. Images may represent style only.

Emtek #3 Wrought Steel Deadbolt - Patio

$69.70

PRODUCT DESCRIPTION

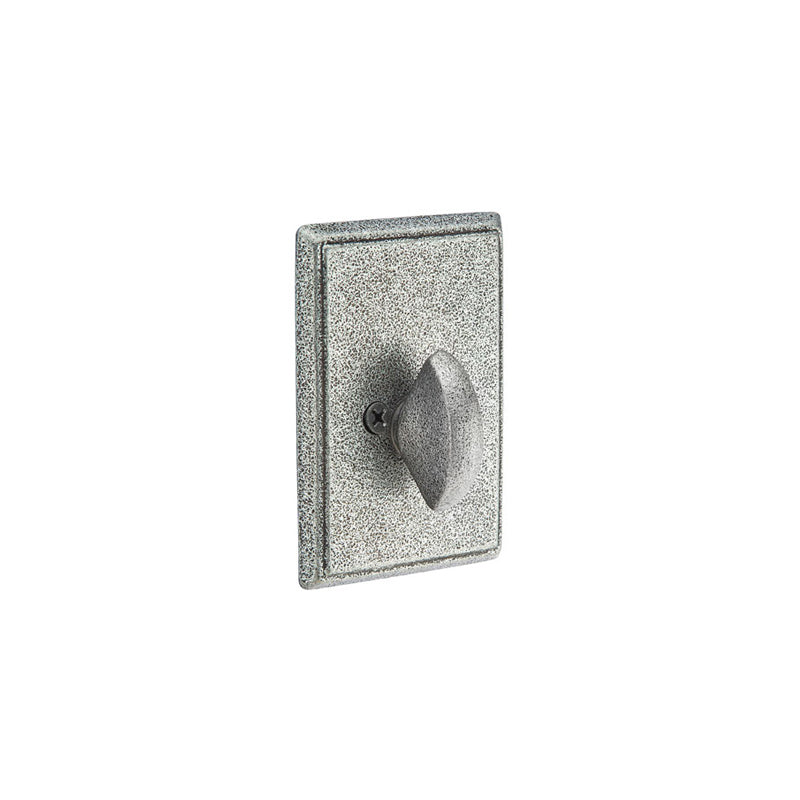

Emtek #3 Wrought Steel Patio Deadbolt

About this product:

From the Emtek Rustic Living collection, the #3 Wrought Steel patio deadbolt is made from wrought steel and available in two beautiful finishes. Emtek offers a high degree of customization, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Split finishes and split styles are also available. Give us a call to design your custom set.

All Emtek items are made to order and will be ready to ship in 7-10 business days. Please note that the estimated delivery times do not include the product handling times. If you are ordering products that have different handling times, the order will ship complete based on the longest handling time. If you want your products to ship separately, please contact us.

 Product Features:
  • Emtek #3 Wrought Steel product page
  • Solid brass cylinder and wrought steel rosette for durability and quality
  • Hardened steel bolt for additional strength and security
  • Heavy gauge steel understrike and brass trim strike shipped with every deadbolt
  • Complete set includes all necessary mounting hardware and accessories
  • Easy installation designed for standard 1-3/4" cross bore and 1" edge bore door prep
  • Exposed mounting screws on interior rosette
  • Available finishes: Flat Black Steel (FBS), Satin Steel (SWS)
  • Emtek offers a Lifetime Limited Warranty to the original user
  • California Residents Proposition 65 Warning



PRODUCT SPECS

Emtek #3 Wrought Steel Patio Deadbolt

About this product:

Patio Deadbolt Graphic

The #3 Wrought Steel patio (single-sided) deadbolt features a hardened steel bolt for additional strength and security. The deadbolt is retracted by a thumbturn on the inside. The #3 Wrought Steel style is also available in the single cylinder (locks/unlocks with a key on the outside and a thumbturn on the inside) and double cylinder (locks/unlocks with a key on the outside and inside of the door) functions. These items are listed separately.

 Product Specs:
  • #3 Wrought Steel Specification Sheet
  • Patio Deadbolt Specification Sheet
  • Cross bore: 1-3/4"
  • Edge bore: 1"
  • Door Thickness: 1-3/4" to 3-3/8"
  • Interior projection: 1-1/4"
  • Interior thickness: 1/4"
  • Backset: 2-3/8" (60mm) or 2-3/4" (70mm) available
  • Latch: Mortised tubular latch with square or radius corner faceplate available.
  • Strike plate: Standard square strike with steel understrike included. Heavy duty strike options available.


INSTALLATION

Emtek #3 Wrought Steel Patio Deadbolt

About this product:

The #3 Wrought Steel patio deadbolt is designed for easy installation using 1-3/4" cross bore and 1" edge bore door prep.

 Product Installation:
  • Installation Instructions
  • When you are preparing for the 1-3/4" cross bore, bore from the inside 1-1/2" deep, do not bore all the way through the door.


ORDER HELP

Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. Emtek also offers a high degree of customization, including split finish and split style options, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Please feel free to contact us for assistance. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" tab above for more information.

 Order Help:
