Emtek Franklin Entry Handleset - Dummy

$423.30

PRODUCT DESCRIPTION

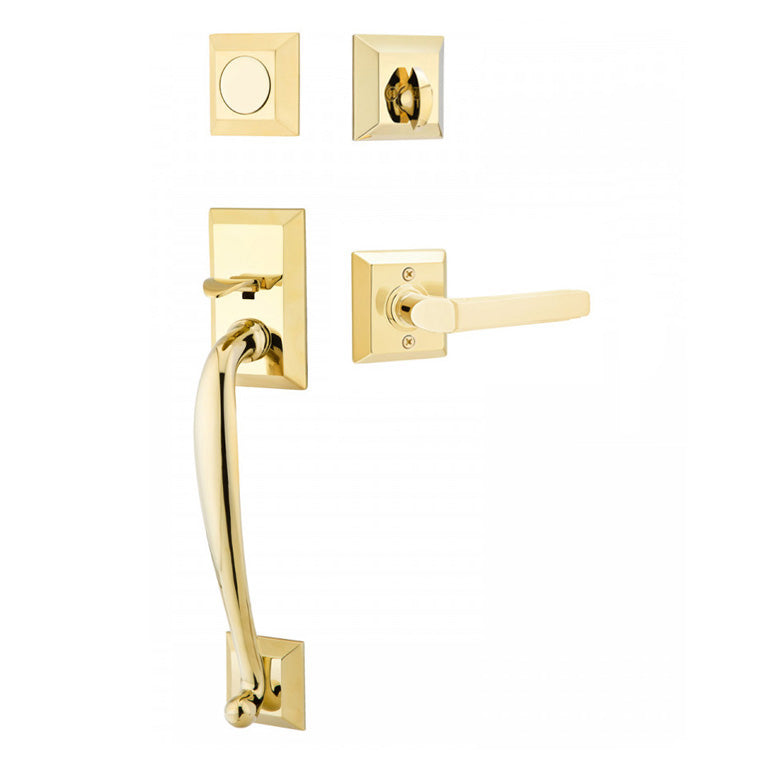

Emtek Franklin Dummy Entrance Handleset

About this product:

From the Emtek American Heritage collection, the Franklin dummy handleset is made from solid brass and available in an array of popular finishes. Emtek offers a high degree of customization, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Split finish and split style sets are also available. Give us a call to design your custom set.

All Emtek items are made to order and will be ready to ship in 7-10 business days. Please note that the estimated delivery times do not include the product handling times. If you are ordering products that have different handling times, the order will ship complete based on the longest handling time. If you want your products to ship separately, please contact us.

 Product Features:
  • Emtek Franklin product page
  • Solid brass construction for durability and quality
  • Complete set includes all necessary mounting hardware and accessories
  • Easy installation designed for standard 2-1/8" cross bore door prep
  • Sectional handlesets require cross bore hole spacing of 4-1/2" center-to-center (c-t-c) or greater
  • Available finishes: Polished Brass (US3), French Antique (US7), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL)
  • Emtek offers a Lifetime Limited Warranty to the original user
  • Emtek Tubular Entryset FAQ video
  • California Residents Proposition 65 Warning



PRODUCT SPECS

Emtek Franklin Dummy Entrance Handleset

About this product:

The Franklin dummy handleset does not have a latch or deadbolt. A dummy handleset is usually used for decorative purposes on the fixed door on a set of double doors. The Franklin style is also available in the single cylinder (locks/unlocks with key on exterior and thumb turn on interior) and double cylinder (locks/unlocks with key on exterior and interior) functions. These items are listed separately.



 Product Specs:
  • Franklin Specification Sheet
  • Dummy Handleset Specification Sheet
  • Cross bore: 2-1/8"
  • Door Thickness: 1-3/4" to 3"
  • Cross bore hole spacing: 4-1/2" center-to-center (c-t-c) or greater
  • Exterior projection: 2-11/16"
  • Interior projection: Depends on handle style
  • Overall grip thickness: 1-5/16"
  • Clearance between door and grip: 1-9/16"
  • Plates thickness: 1/2"
  • Dummy latch to bottom handle mounting screw: 9-7/16" center-to-center (c-t-c)



INSTALLATION

Emtek Franklin Dummy Entrance Handleset

About this product:

The Franklin dummy handleset is designed for easy installation using standard 2-1/8" cross bore door prep. This sectional handleset requires a cross bore hole spacing of 4-1/2" center-to-center (c-t-c) or greater.

 Product Installation:
