Emtek

Monolithic with Lafayette Grip Entry Handleset - Dummy

$486.20

☆ Product Overview

PRODUCT DESCRIPTION

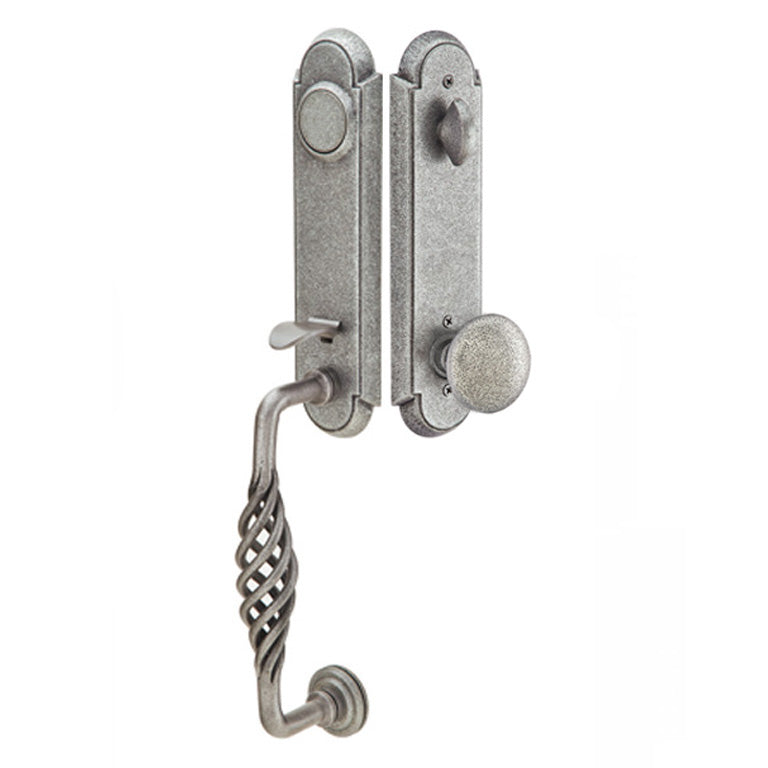

Emtek Monolithic with Lafayette Grip Dummy Entrance Handleset

About this product:

From the Emtek Rustic Living collection, the Monolithic with Lafayette Grip dummy handleset is made from wrought steel and available in an two beautiful finishes. Emtek offers a high degree of customization, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Split finish and split style sets are also available. Give us a call to design your custom set.

All Emtek items are made to order and will be ready to ship in 7-10 business days. Please note that the estimated delivery times do not include the product handling times. If you are ordering products that have different handling times, the order will ship complete based on the longest handling time. If you want your products to ship separately, please contact us.

 Product Features:



PRODUCT SPECS

Emtek Monolithic with Lafayette Grip Dummy Entrance Handleset

About this product:

The Monolithic with Lafayette Grip dummy handleset does not have a latch or deadbolt. A dummy handleset is usually used for decorative purposes on the fixed door on a set of double doors. The Monolithic with Lafayette Grip style is also available in the single cylinder (locks/unlocks with key on exterior and thumb turn on interior) and double cylinder (locks/unlocks with key on exterior and interior) functions. These items are listed separately.


 Product Specs:
  • Monolithic with Lafayette Grip Specification Sheet
  • Dummy Handleset Specification Sheet
  • Cross bore: 2-1/8"
  • Door Thickness: 1-3/4" to 3"
  • Cross bore hole spacing: 5-1/2" center-to-center (c-t-c) or greater
  • Exterior projection: 3"
  • Interior projection: Depends on handle style
  • Overall grip thickness: 3/4"
  • Clearance between door and grip: 1-5/8"
  • Plates thickness: 1/2"
  • Dummy latch to bottom handle mounting screw: 8-5/8" center-to-center (c-t-c)



INSTALLATION

Emtek Monolithic with Lafayette Grip Dummy Entrance Handleset

About this product:

The Monolithic with Lafayette Grip dummy handleset is designed for easy installation using standard 2-1/8" cross bore door prep. This half plate handleset requires a cross bore hole spacing of 5-1/2" center-to-center (c-t-c) or greater.

 Product Installation:





ORDER HELP

Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. Emtek also offers a high degree of customization, including split finish and split style options, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Please feel free to contact us for assistance. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" tab above for more information.

 Order Help:
