Not all finish and hardware combinations are shown. Images may represent style only.
Emtek

Monolithic with San Carlos Grip Entry Handleset - Dummy

$486.20

PRODUCT DESCRIPTION

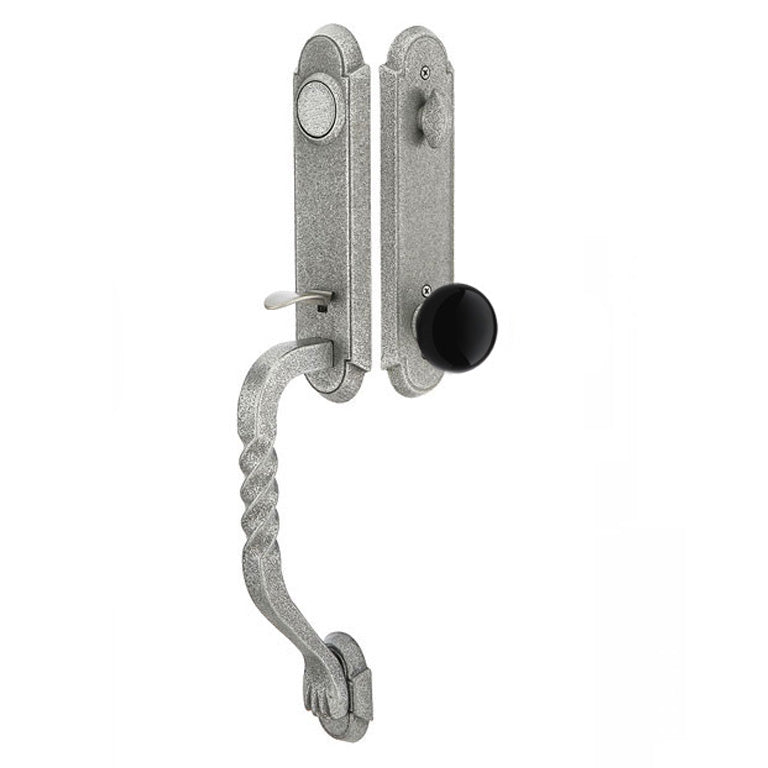

Emtek Monolithic with San Carlos Grip Dummy Entrance Handleset

About this product:

From the Emtek Rustic Living collection, the Monolithic with San Carlos Grip dummy handleset is made from wrought steel and available in two beautiful finishes. Emtek offers a high degree of customization, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Split finish and split style sets are also available. Give us a call to design your custom set.

All Emtek items are made to order and will be ready to ship in 7-10 business days. Please note that the estimated delivery times do not include the product handling times. If you are ordering products that have different handling times, the order will ship complete based on the longest handling time. If you want your products to ship separately, please contact us.

 Product Features:



PRODUCT SPECS

Emtek Monolithic with San Carlos Grip Dummy Entrance Handleset

About this product:

The Monolithic with San Carlos Grip dummy handleset does not have a latch or deadbolt. A dummy handleset is usually used for decorative purposes on the fixed door on a set of double doors. The Monolithic with San Carlos Grip style is also available in the single cylinder (locks/unlocks with key on exterior and thumb turn on interior) and double cylinder (locks/unlocks with key on exterior and interior) functions. These items are listed separately.


 Product Specs:
  • Monolithic with San Carlos Grip Specification Sheet
  • Dummy Handleset Specification Sheet
  • Cross bore: 2-1/8"
  • Door Thickness: 1-3/4" to 3"
  • Cross bore hole spacing: 5-1/2" center-to-center (c-t-c) or greater
  • Exterior projection: 3-1/2"
  • Interior projection: Depends on handle style
  • Overall grip thickness: 3/4"
  • Clearance between door and grip: 2"
  • Plates thickness: 1/2"
  • Dummy latch to bottom handle mounting screw: 9-3/4" center-to-center (c-t-c)



INSTALLATION

Emtek Monolithic with San Carlos Grip Dummy Entrance Handleset

About this product:

The Monolithic with San Carlos Grip dummy handleset is designed for easy installation using standard 2-1/8" cross bore door prep. This half plate handleset requires a cross bore hole spacing of 5-1/2" center-to-center (c-t-c) or greater.

 Product Installation:
