Emtek

Rectangular Monolithic Entry Handleset - Single Cylinder

$652.80

☆ Product Overview

PRODUCT DESCRIPTION

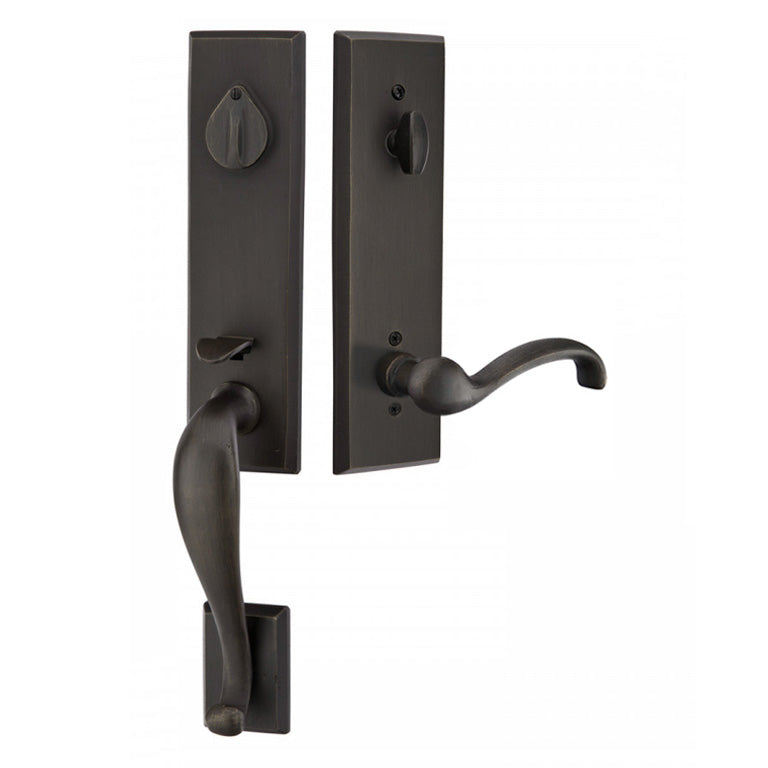

Emtek Rectangular Monolithic Single Cylinder Entrance Handleset

About this product:

From the Emtek Rustic Living collection, the Rectangular Monolithic single cylinder handleset is made from solid bronze and available in three beautiful finishes. Emtek offers a high degree of customization, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Split finish and split style sets are also available. Give us a call to design your custom set.

All Emtek items are made to order and will be ready to ship in 7-10 business days. Please note that the estimated delivery times do not include the product handling times. If you are ordering products that have different handling times, the order will ship complete based on the longest handling time. If you want your products to ship separately, please contact us.



 Product Features:
  • Emtek Rectangular Monolithic product page
  • Solid bronze construction for durability and quality
  • Complete set includes all necessary mounting hardware and accessories
  • Easy installation designed for standard 2-1/8" cross bore door prep
  • Half plate handlesets require deadbolt to latch spacing of 5-1/2" center-to-center (c-t-c) or greater
  • Available finishes: Flat Black Bronze (FB), Medium Bronze (MB), Tumbled White Bronze (TWB)
  • Emtek offers a Lifetime Limited Warranty to the original user
  • Emtek Tubular Entryset FAQ video
  • California Residents Proposition 65 Warning



PRODUCT SPECS

Emtek Rectangular Monolithic Single Cylinder Entrance Handleset

About this product:

Single Cylinder Handleset GraphicThe Rectangular Monolithic single cylinder handleset features a non-locking latch and a locking deadbolt. The latch is retracted by a thumb piece on the outside or a knob/lever on the inside. The deadbolt is locked/unlocked by a key on the outside and a thumb turn on the inside. The Rectangular Monolithic style is also available in the double cylinder (locks/unlocks with key on exterior and interior) and dummy (used on the fixed door on a set of double doors) functions. These items are listed separately.

 Product Specs:
  • Rectangular Monolithic Specification Sheet
  • Single Cylinder Handleset Specification Sheet
  • Cross bore: 2-1/8"
  • Edge bore: 1"
  • Door Thickness: 1-3/4" to 2-7/8"
  • Deadbolt to latch spacing: 5-1/2" center-to-center (c-t-c) or greater
  • Exterior projection: 3"
  • Interior projection: Depends on handle style
  • Overall grip thickness: 1-11/16"
  • Clearance between door and grip: 1-7/8"
  • Plates thickness: 1/2"
  • Latch to bottom handle mounting screw: 6-7/8" center-to-center (c-t-c)
  • Backset: 2-3/8" (60mm) or 2-3/4" (70mm) available
  • Latch: Mortised tubular latch is standard (drive-in latch available on request)
  • Latch faceplate and strike: Square corner or radius corner available
  • Keyway: Schlage C or Weiser WR5 available
  • Keys: Each set includes 2 keys



INSTALLATION

Emtek Rectangular Monolithic Single Cylinder Entrance Handleset

About this product:

The Rectangular Monolithic single cylinder handleset is designed for easy installation using standard 2-1/8" cross bore and 1" edge bore door prep. This half plate handleset requires a deadbolt to latch spacing of 5-1/2" center-to-center (c-t-c) or greater.

 Product Installation:





ORDER HELP

Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. Emtek also offers a high degree of customization, including split finish and split style options, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Please feel free to contact us for assistance. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" tab above for more information.

Keying information: If you want to order a set that will work with your existing key, it is important to order the same type of key cylinder, because the keys are not interchangeable. For example, a Schlage C key cannot fit into a Weiser WR5 key cylinder. In addition to matching the key cylinder type, you must also match the key code. If you need assistance in determining your key cylinder type or your key code please take your key to a locksmith or key copy center.

We also offer the option of ordering sets that are “keyed alike” or “keyed different”. “Keyed alike” means that all sets ordered together will operate with the same key. “Keyed different” means that each set ordered together will operate with its own unique key. If you are ordering multiple keyed products, such as two of the same product with different options or two different products, please include a note with any keying instructions on the Shopping Cart page.

 Order Help:
