Emtek Regular Deadbolt - Single Cylinder

$88.40

PRODUCT DESCRIPTION

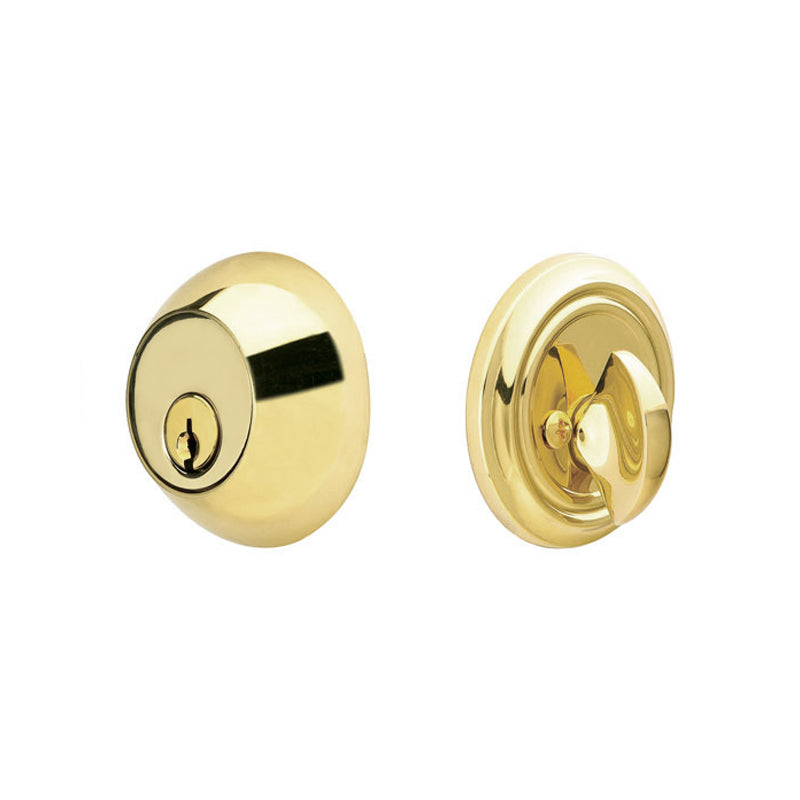

Emtek Regular Single Cylinder Deadbolt

About this product:

From the Emtek American Heritage collection, the Regular single cylinder deadbolt is made from solid brass and available in an array of popular finishes. Emtek offers a high degree of customization, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Split finishes and split styles are also available. Give us a call to design your custom set.

All Emtek items are made to order and will be ready to ship in 7-10 business days. Please note that the estimated delivery times do not include the product handling times. If you are ordering products that have different handling times, the order will ship complete based on the longest handling time. If you want your products to ship separately, please contact us.

 Product Features:
  • Emtek Regular Deadbolt product page
  • Solid brass cylinder, housing, collar, thumbturn, and rosette for durability and quality
  • Hardened steel bolt for additional strength and security
  • Heavy gauge steel understrike and brass trim strike shipped with every deadbolt
  • Complete set includes all necessary mounting hardware and accessories
  • Easy installation designed for standard 2-1/8" cross bore and 1" edge bore door prep
  • Available finishes: Polished Brass (US3), Satin Brass (US4), French Antique (US7), Oil Rubbed Bronze (US10B), Polished Nickel (US14), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Unlaquered Brass (US3NL)
  • Emtek offers a Lifetime Limited Warranty to the original user
  • California Residents Proposition 65 Warning



PRODUCT SPECS

Emtek Regular Single Cylinder Deadbolt

About this product:

Emtek Single Cylinder Deadbolt Graphic
The Regular single cylinder deadbolt features a hardened steel bolt for additional strength and security. The deadbolt is retracted by a key on the outside or the thumbturn on the inside. The Regular style is also available in the double cylinder (locks/unlocks with a key on the outside and inside of the door) and patio (single-sided) (locks/unlocks with a thumbturn on the inside only) functions. These items are listed separately.

 Product Specs:
  • Regular Specification Sheet
  • Single Cylinder Deadbolt Specification Sheet
  • Cross bore: 2-1/8"
  • Edge bore: 1"
  • Door Thickness: 1-3/8" to 3"
  • Exterior projection: 13/16"
  • Interior projection: 1-1/4"
  • Interior thickness: 5/16"
  • Backset: 2-3/8" (60mm) or 2-3/4" (70mm) available
  • Latch: Mortised tubular latch with square or radius corner faceplate available.
  • Strike plate: Standard square strike with steel understrike included. Heavy duty strike options available.
  • Keyway: Schlage C or Weiser WR5 available
  • Keys: Each set includes 2 keys


INSTALLATION

Emtek Regular Single Cylinder Deadbolt

About this product:

The Regular single cylinder deadbolt is designed for easy installation using standard 2-1/8" cross bore and 1" edge bore door prep.

 Product Installation:



ORDER HELP

Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. Emtek also offers a high degree of customization, including split finish and split style options, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Please feel free to contact us for assistance. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" tab above for more information.

Keying information: If you want to order a set that will work with your existing key, it is important to order the same type of key cylinder, because the keys are not interchangeable. For example, a Schlage C key cannot fit into a Weiser WR5 key cylinder. In addition to matching the key cylinder type, you must also match the key code. If you need assistance in determining your key cylinder type or your key code please take your key to a locksmith or key copy center.

We also offer the option of ordering sets that are “keyed alike” or “keyed different”. “Keyed alike” means that all sets ordered together will operate with the same key. “Keyed different” means that each set ordered together will operate with its own unique key. If you are ordering multiple keyed products, such as two of the same product with different options or two different products, please include a note with any keying instructions on the Shopping Cart page.
