Not all finish and hardware combinations are shown. Images may represent style only.
Emtek

Victoria Knob Set - Passage

$199.75

PRODUCT DESCRIPTION

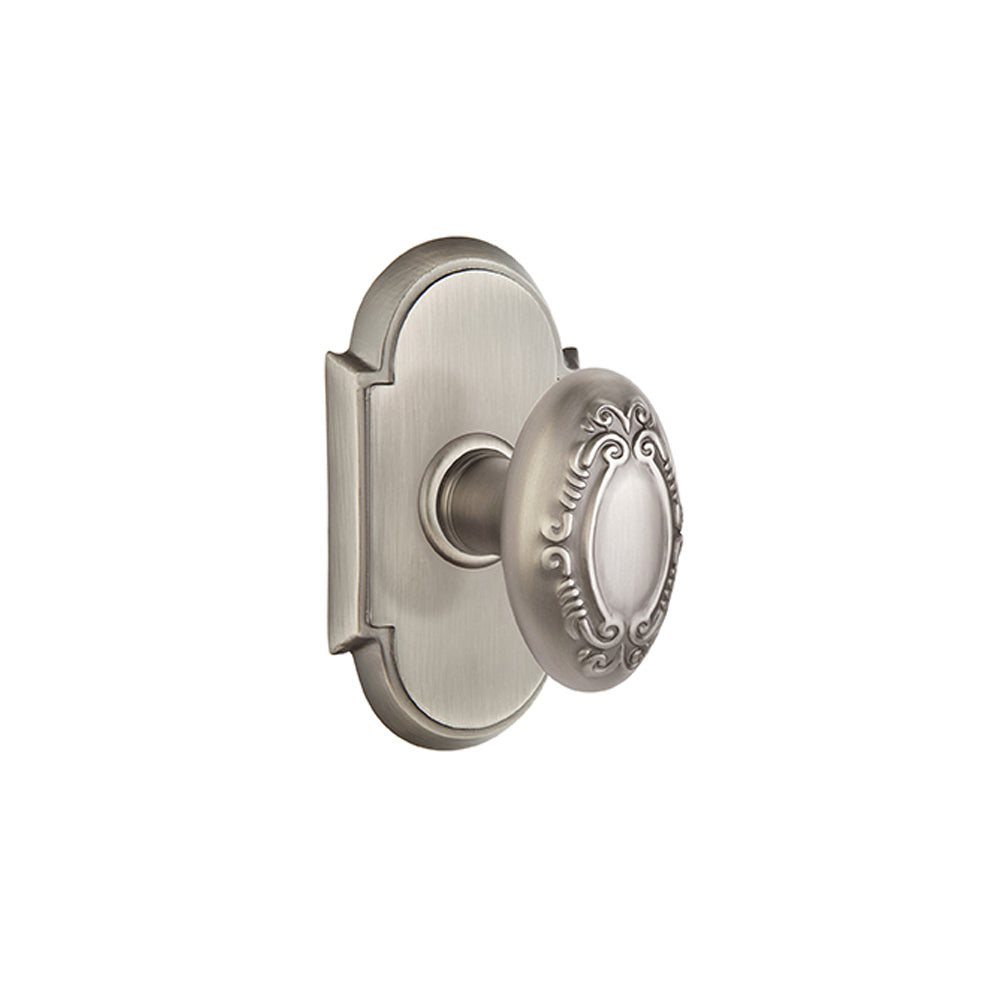

Emtek Victoria Knob Set - Passage

About this product:

From the Emtek American Heritage collection, the Victoria knob set is made from solid brass and available in an array of popular finishes. Emtek offers a high degree of customization, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Split finish and split style sets are also available. Give us a call to design your custom set.

All Emtek items are made to order and will be ready to ship in 7-10 business days. Please note that the estimated delivery times do not include the product handling times. If you are ordering products that have different handling times, the order will ship complete based on the longest handling time. If you want your products to ship separately, please contact us.

Product Features:
  • Emtek Victoria product page
  • Solid brass construction for durability and quality
  • Complete set includes all necessary mounting hardware and accessories
  • Easy installation designed for standard 2-1/8" cross bore door prep and 1" edge bore for latch
  • Features spring assist for optimal operational strength
  • Exposed mounting screws on interior rosette
  • Available finishes: Polished Brass (US3), French Antique (US7), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Polished Chrome (US26), Unlacquered Brass (US3NL)
  • Emtek offers a Lifetime Limited Warranty to the original user
  • California Residents Proposition 65 Warning



PRODUCT SPECS

Emtek Victoria Knob Set - Passage

About this product:

Passage Lever Set Graphic

The Victoria passage knob set features a passage latch but contains no locking function. The Victoria knob is also available in the privacy (locks/unlocks with a push-button on the interior and can be unlocked from the exterior with the emergency release), dummy (contains no latch or locking function) and half dummy (one sided with no latch or locking function) functions. These items are listed separately.

Product Specs:



INSTALLATION

Emtek Victoria Knob Set - Passage

About this product:

The Victoria knob set is designed for easy installation using standard 2-1/8" cross bore and 1" edge bore door prep.

Product Installation:



LATCH & MOUNT STYLE

Standard Latch

Emtek Standard Latch Graphic
  • Exposed screws on interior rosette
  • Standard Rotation latch

    • 28° Rotation Latch Upgrade

    Emtek 28 Degree Latch Graphic
  • Exposed screws on interior rosette
  • Requires less rotation than standard latch

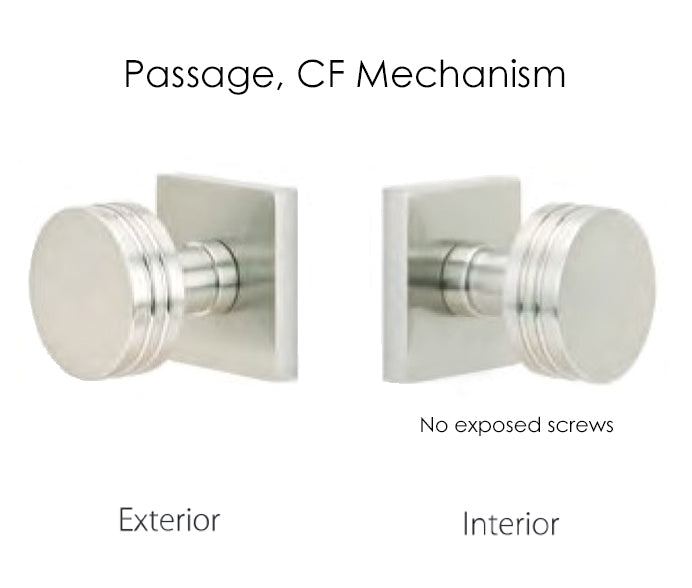

    • CF Mechanism Upgrade

    Emtek CF Mechanism Graphic
  • Concealed screws on interior rosette
  • Handing not required, except for Knob by Lever and split finish products
  • Supplied with a 28° Rotation latch and dust box
  • Supplied with standard latch and dust box

    • ORDER HELP

    Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. Emtek also offers a high degree of customization, including split finish and split style options, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Please feel free to contact us for assistance. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" tab above for more information.
