FPL Hardware

4" x 4" Heavy Duty Ball Bearing Radius Corner Hinge Pair - Solid Brass

BB4709
$95.04

☆ Product Overview

PRODUCT DESCRIPTION

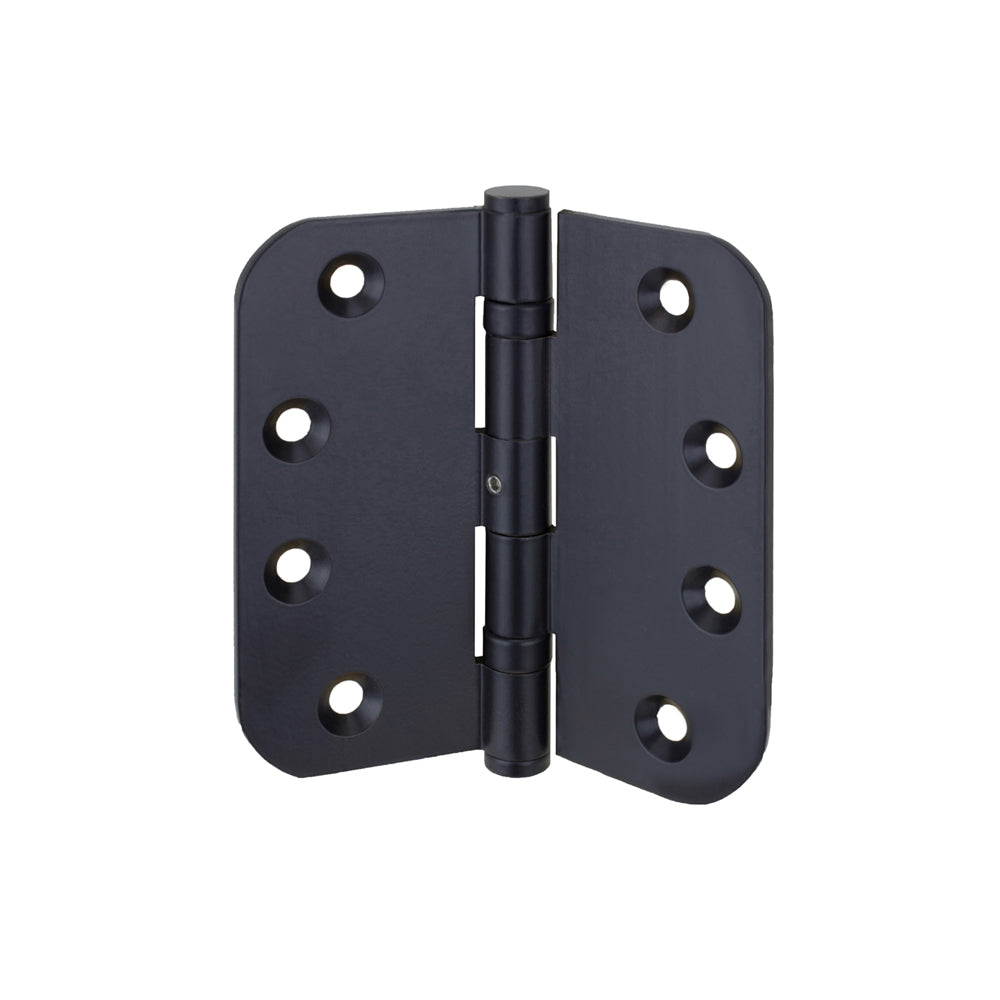

FPL 4" x 4" Heavy Duty Ball Bearing Radius Corner Hinge Pair - Solid Brass

About this product:

FPL's 4" x 4" Heavy Duty Ball Bearing Radius Corner Hinge is made of solid brass and is available in an array of beautiful finishes. Both leafs have 5/8" radius corners. Two stainless steel ball bearings and a stainless steel non-removable pin makes for a durable and secure product. Most FPL items are in stock and will be ready to ship in 1-3 business days.

 Product Features:
  • FPL 4" x 4" Heavy Duty Ball Bearing Radius Corner Hinge product page
  • Sold in pairs
  • Solid brass construction and stainless steel pin for durability and security
  • Heavy duty performance:
    • 2 hinges support 118 lbs
    • 3 hinges support 177 lbs
    • 4 hinges support 236 lbs
  • Non-removable pin (NRP)
  • A set screw on the interior side of the hinge locks the hinge pin in place
    • Complete set includes all necessary mounting hardware and accessories. Screw packs are available to purchase separately here.
    • Decorative hinge tip options are available here
    • Available finishes: Polished Brass (US3), Antique Brass (US5), Oil Rubbed Bronze (US10B), Pewter (US15A), Polished Chrome (US26), Satin Chrome (US26D), Lifetime Polished Brass (PVD), Black (BPC), White (WPC)
    • California Residents Proposition 65 Warning



    PRODUCT SPECS

    FPL 4" x 4" Heavy Duty Ball Bearing Radius Corner Hinge Pair - Solid Brass

    About this product:

    FPL 4" x 4" Heavy Duty Ball Bearing Radius Corner Hinge Specs
     Product Specs:

    INSTALLATION

    FPL 4" x 4" Heavy Duty Ball Bearing Radius Corner Hinge Pair - Solid Brass

    About this product:

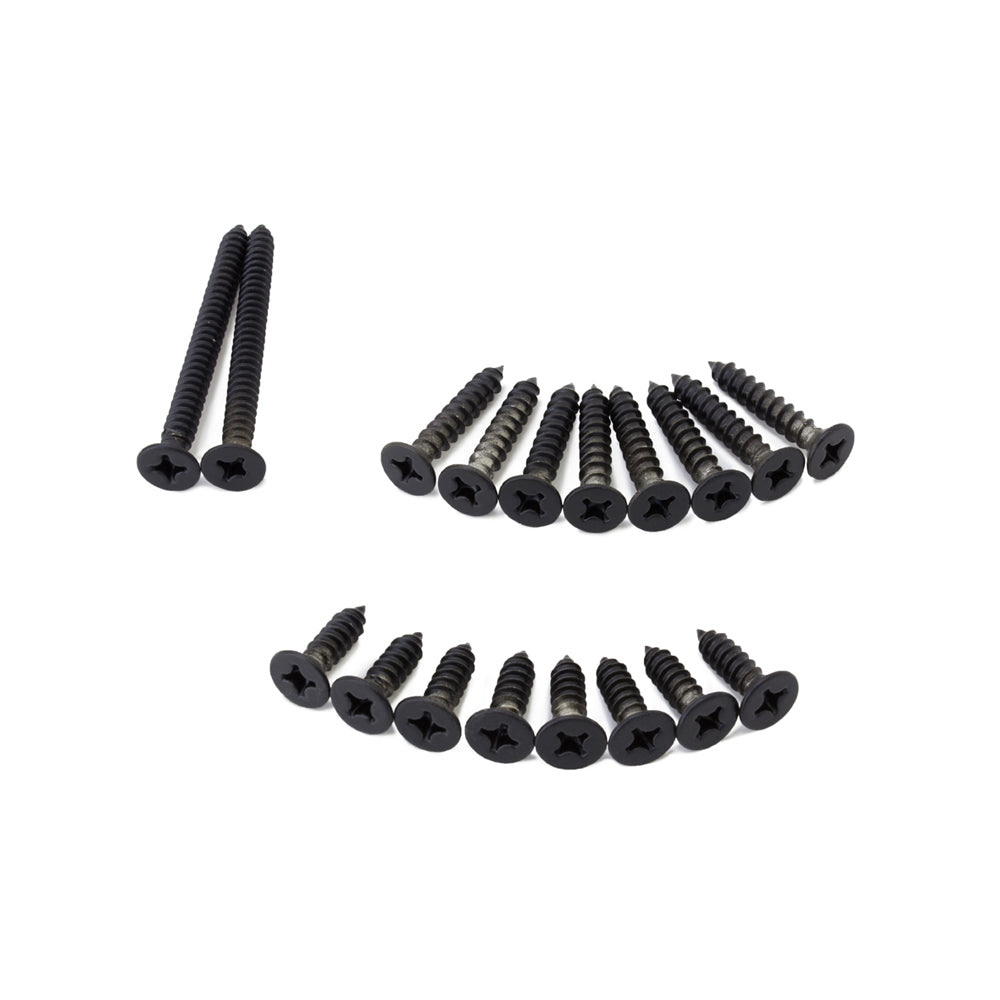

    The 4" x 4" Heavy Duty Ball Bearing Radius Corner Hinge is designed for easy installation using included finish-matched steel screws.

     Product Installation:
    • Easy installation
    • Includes finished-matched steel screws
    • See the 'Product Specs' tab for screw hole location and hinge specs
