FPL Hardware

64mm European Profile Cylinder - Single Keyed

025S-64
$159.60

☆ Product Overview

PRODUCT DESCRIPTION

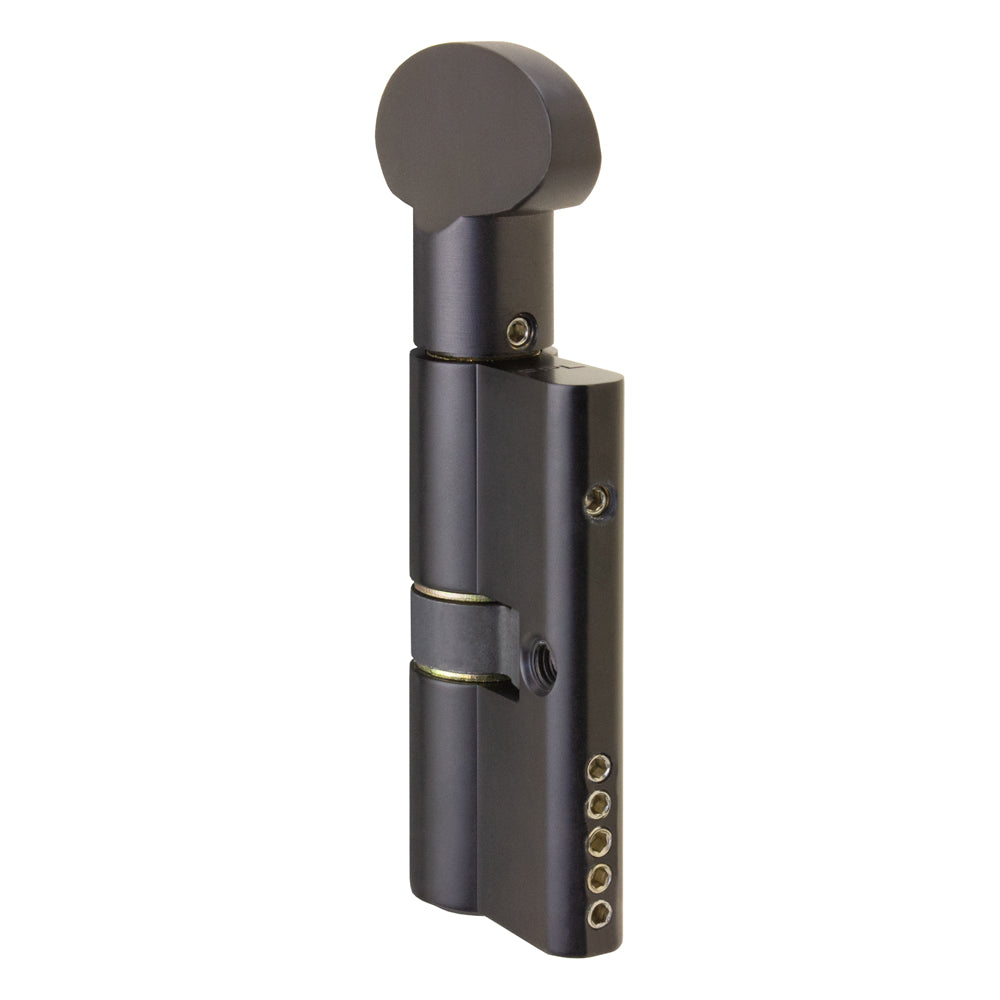

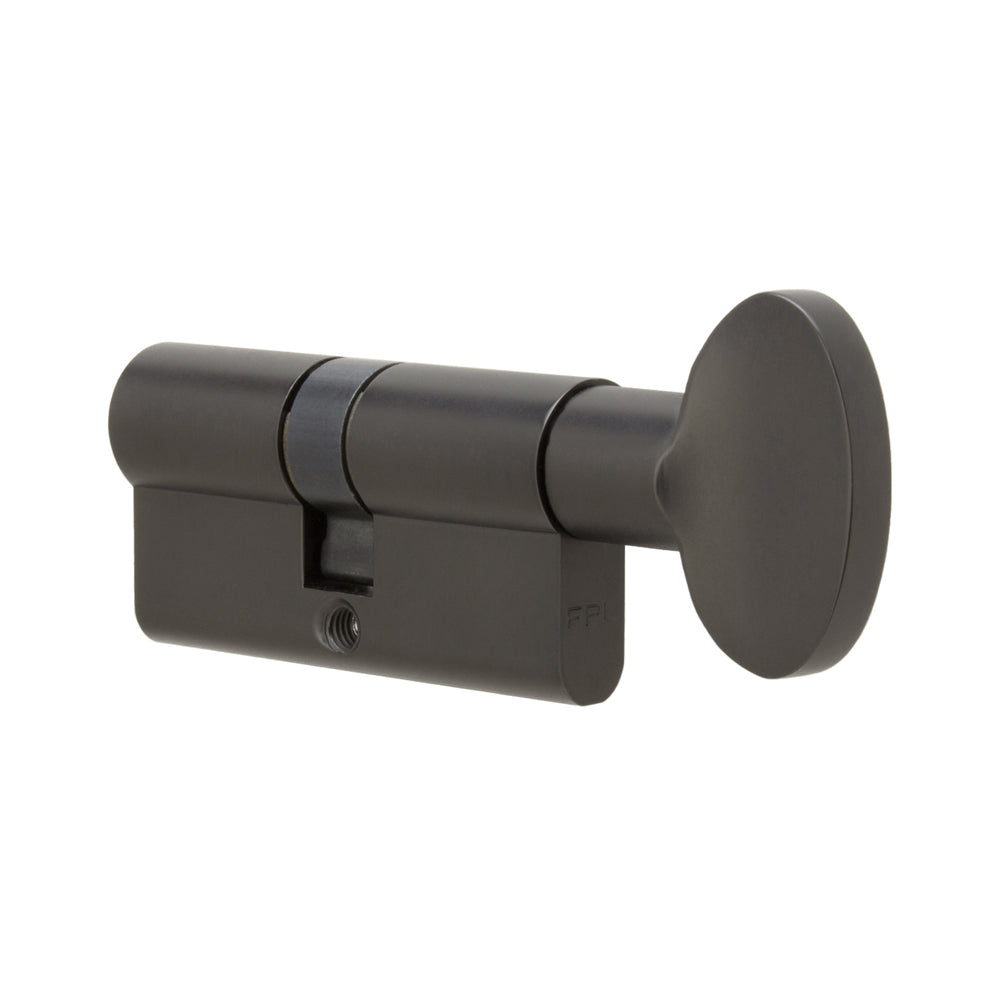

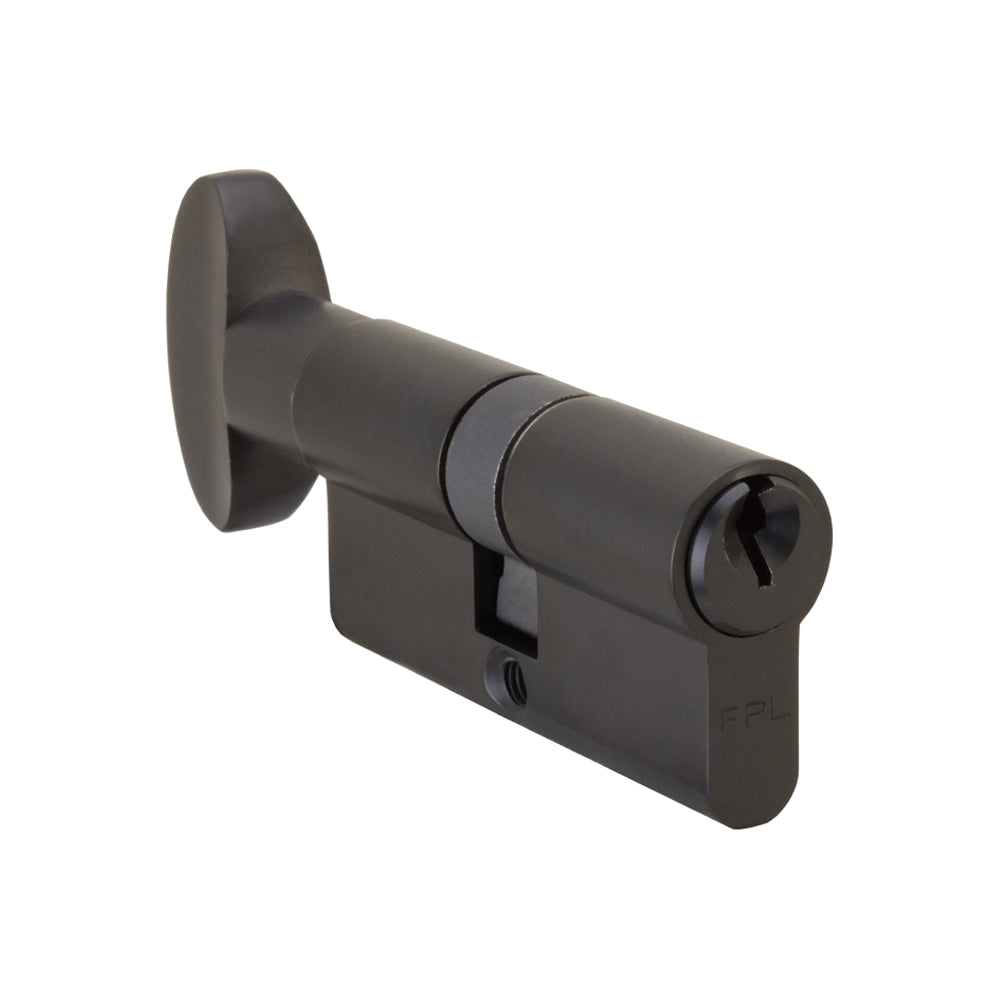

FPL 64mm European Profile Cylinder - Single Keyed

About this product:

FPL's 64mm European Profile Cylinder is made of brass to ensure durability and quality. These profile cylinders are for use in single or multipoint mortise locks requiring a Euro profile cylinder. Most FPL items are in stock and will be ready to ship in 1-3 business days.

 Product Features:
  • Brass construction for durability and quality
  • Set screws for ease of re-keying
  • 5-pin Schlage C keyway
  • Includes all necessary mounting hardware
  • Available finishes: Polished Brass (US3), Antique Brass (US5), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Polished Chrome (US26), Satin Chrome (US26D), Lifetime Polished Brass (PVD)
  • California Residents Proposition 65 Warning



PRODUCT SPECS

FPL 64mm European Profile Cylinder - Single Keyed

About this product:

FPL 64mm Profile Cylinder Dimensions

 Product Specs:
  • 64mm European Profile Cylinder Specification Sheet
  • Height: 1-5/8"
  • Width: 21/32"
  • Length: 64mm (2-33/64")
  • Exterior length: 31mm (1-7/32")
  • Interior length: 31mm (1-7/32")
  • Set screws for ease of rekeying
  • For use on lock cases centered in the door edge
  • Keyway: Schlage C
  • Keys: Each set includes 2 keys

INSTALLATION

FPL 64mm European Profile Cylinder - Single Keyed

About this product:

 Product Installation:
  • Easy installation
  • Includes all necessary mounting hardware


ORDER HELP

Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" menu tab above for more information.

Keying information: If you want to order a set that will work with your existing key, it is important to order the same type of key cylinder, because the keys are not interchangeable. For example, a Schlage C key cannot fit into a Weiser WR5 key cylinder. In addition to matching the key cylinder type, you must also match the key code. If you need assistance in determining your key cylinder type or your key code please take your key to a locksmith or key copy center.

We also offer the option of ordering sets that are “keyed alike” or “keyed different”. “Keyed alike” means that all sets ordered together will operate with the same key. “Keyed different” means that each set ordered together will operate with its own unique key. If you are ordering multiple keyed products, such as two of the same product with different options or two different products, please include a note with any keying instructions on the Shopping Cart page.

 Order Help:
