FPL Hardware

9232 Sidelight Mortise Deadbolt

$285.00

☆ Product Overview

PRODUCT DESCRIPTION

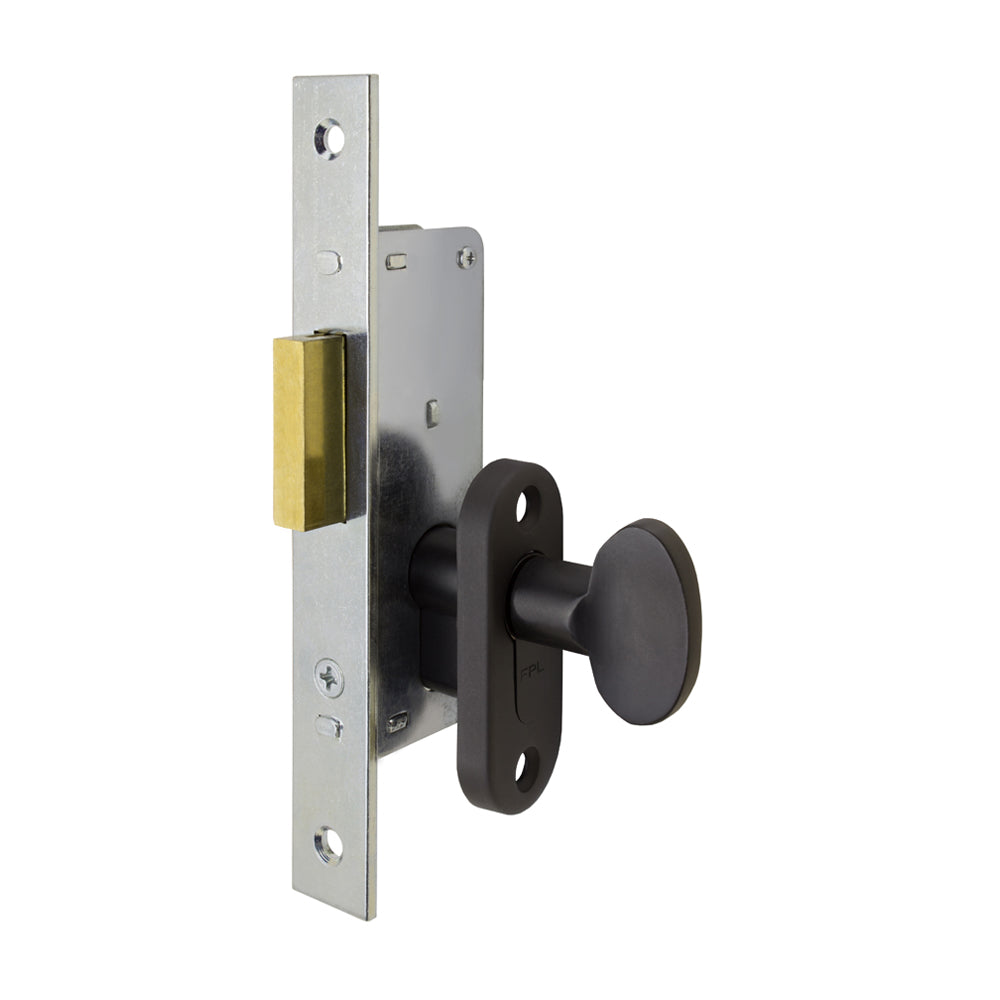

FPL 9232 Sidelight Mortise Deadbolt

FPL's 9232 sidelight mortise deadbolt provides simple security for operable sidelights, and is built to last, with durable materials and construction.

 Product Features:
  • Unlocks / locks from only interior side of sidelight
  • Solid brass Euro profile cylinder and escutcheon available in an array of popular finishes
  • Complete set includes all necessary mounting hardware and accessories
  • Available finishes: Polished Brass (US3), Antique Brass (US5), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Antique Nickel (US15A), Polished Chrome (US26), Satin Chrome (US26D)
  • FPL offers a Lifetime Limited Mechanism Warranty to the original user
  • California Residents Proposition 65 Warning



PRODUCT SPECS

FPL 9232 Sidelight Mortise Deadbolt



 Product Specs:
  • Single throw deadbolt operated by Euro profile cylinder
  • Half cylinder with thumb turn only
  • Backset: 7/8" (.875", 22mm)
  • Deadbolt throw: 3/8" (.375", 9.5mm)
  • Door Thickness: 1-3/4" or 2-1/4"
  • Strike: Steel, zinc plated (included)



INSTALLATION

FPL 9232 Sidelight Mortise Deadbolt

The 9232 mortise deadbolt requires straightforward installation.

 Product Installation:
  • 9232 mortise mechanism requires mortise pocket cut into sidelight
  • Euro profile cylinder requires milling through interior side only of sidelight face
  • Cylinder escutcheon surface mounts to sidelight
  • Strike requires mortise pocket cut into jamb
