FPL Hardware

Atlantis Deadbolt - Single Cylinder

1002

$36.95

$18.95

☆ Product Overview

PRODUCT DESCRIPTION

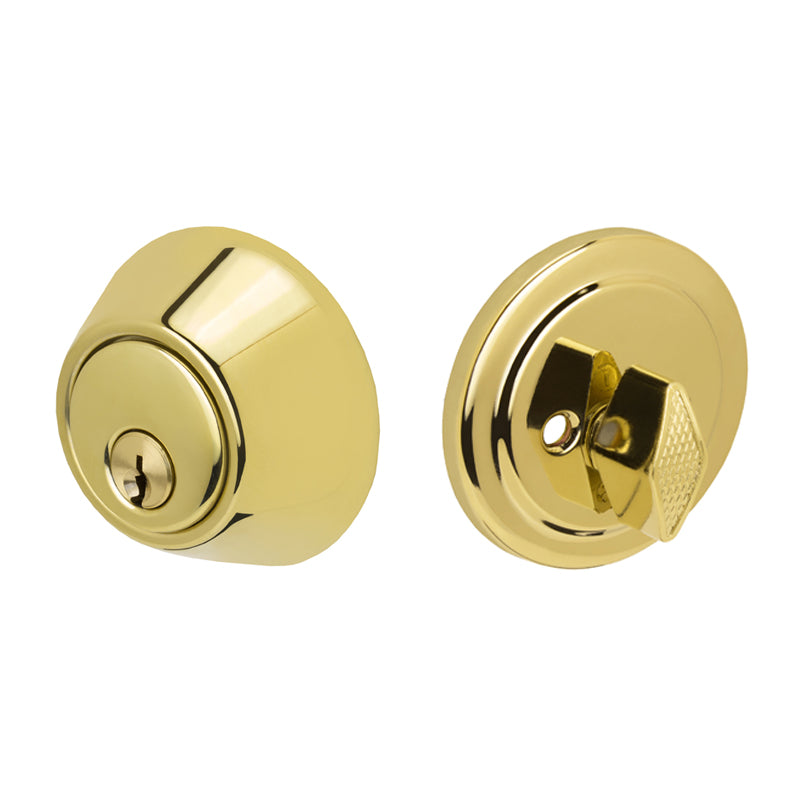

FPL Atlantis Single Cylinder Deadbolt

About this product:

FPL's Atlantis single cylinder deadbolt is made of zinc and is available in two popular finishes. This deadbolt provides a clean, classic look and pairs well with the FPL Hampton Lever Set.

Most FPL items are in stock and will be ready to ship in 1-3 business days.

 Product Features:
  • Zinc construction for attractive design and pricing
  • Easy installation designed for standard 2-1/8" cross bore door prep
  • Complete set includes all necessary mounting hardware and accessories
  • Available finishes: Lifetime Polished Brass (PVD), White (WPC)
  • California Residents Proposition 65 Warning



PRODUCT SPECS

FPL Atlantis Single Cylinder Deadbolt

About this product:

Single Cylinder Deadbolt

The Atlantis single cylinder deadbolt locks/unlocks with a key on the outside or the thumbturn on the inside.

 Product Specs:
  • Atlantis Specification Sheet
  • Single Cylinder Deadbolt Specification Sheet
  • Cross bore: 2-1/8"
  • Edge bore: 1"
  • Adjustable backset: 2-3/8" (60mm) or 2-3/4" (70mm)
  • Door thickness: 1-3/8" to 1-3/4" (Screws included)
  • Exterior projection: 1"
  • Interior projection: 1"
  • Interior thickness: 3/8"
  • Latch: Mortised tubular latch
  • Latch faceplate and strike: Square and radius corner
  • Keyway: Schlage C
  • Keys: Each set includes 2 keys



INSTALLATION

FPL Atlantis Single Cylinder Deadbolt

About this product:

The Atlantis single cylinder deadbolt is designed for easy installation using standard 2-1/8" cross bore and 1" edge bore door prep.

 Product Installation:
