FPL Hardware

Sliding Door Exterior Handle - Patio

BAL-EXT-PT-B
$10.45

☆ Product Overview

PRODUCT DESCRIPTION

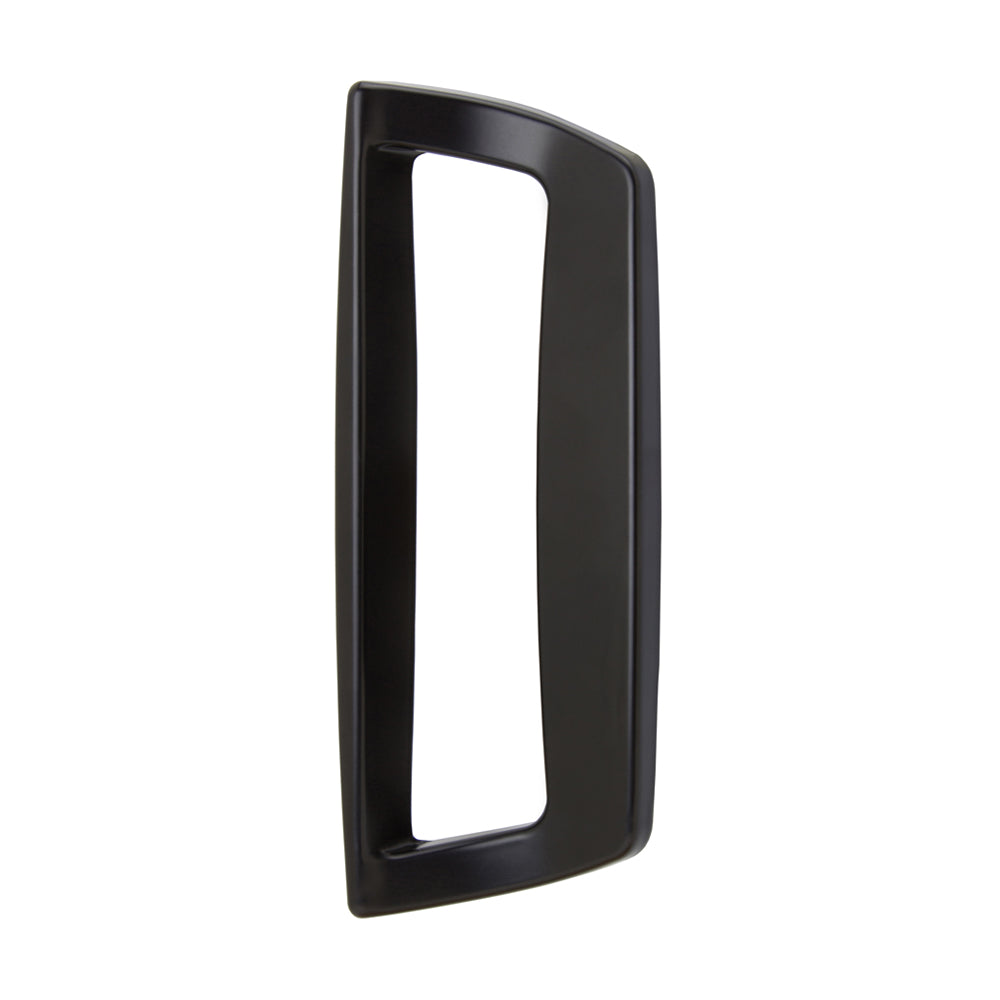

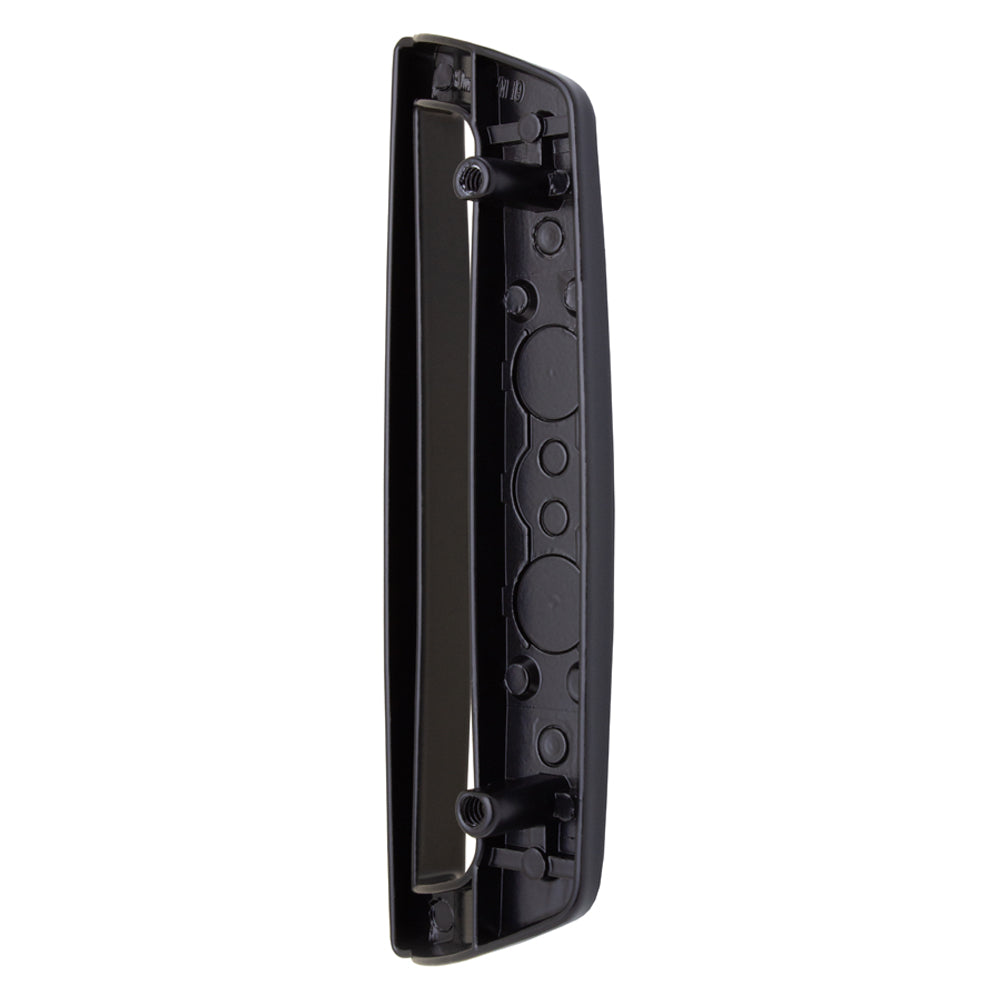

FPL Sliding Door Exterior Handle - Patio

About this product:

FPL's Sliding Door Exterior Handle is made from zinc and available in a quality black powder coat finish. When needing to replace an exterior sliding door handle, this is a simple and cost effective choice. If you are needing a full handle set, click here. Most FPL items are in stock and will be ready to ship in 1-3 business days.

 Product Features:
  • Part number BAL-EXT-PT-B
  • Zinc construction for attractive design and pricing
  • Powder coat finish for durability
  • Complete set includes all necessary mounting hardware and accessories
  • Easy installation designed for standard 3-15/16" center-to-center (c-t-c) screw hole spacing
  • Replacement handle compatible with many interior sliding door handles



PRODUCT SPECS

FPL Sliding Door Exterior Handle - Patio

About this product:

FPL BAL-EXT-PT Dimensions

 Product Specs:
  • BAL-EXT-PT-B Specification Sheet
  • Screw hole spacing: 3-15/16" center-to-center (c-t-c)
  • The patio configuration can have a latch in the offset position, 2-5/8" center-to-center (c-t-c) or the centered position, 2" center-to-center (c-t-c)
  • Compatible with right or left handed doors
  • Includes 1-15/16" 10-24 finished matched machine screws
  • Standard mounting hardware will fit door thickness of 1-3/4" (contact us if different screw lengths needed)
  • Plate width: 2-5/16"
  • Plate length: 6-9/16"
  • Projection from door face: 1-1/8"



INSTALLATION

FPL Sliding Door Exterior Handle - Patio

About this product:

This patio sliding exterior door handle is designed for easy installation using standard 3-15/16" screw hole spacing. It is compatible with many common sliding door mortise lock configurations.

 Product Installation:
  • The patio configuration can have a latch in the offset position, 2-5/8" center-to-center (c-t-c) or the centered position, 2" center-to-center (c-t-c)
  • Includes 1-15/16" 10-24 finished matched machine screws
  • Standard mounting hardware will fit door thickness of 1-3/4" (contact us if different screw lengths needed)
