Not all finish and hardware combinations are shown. Images may represent style only.

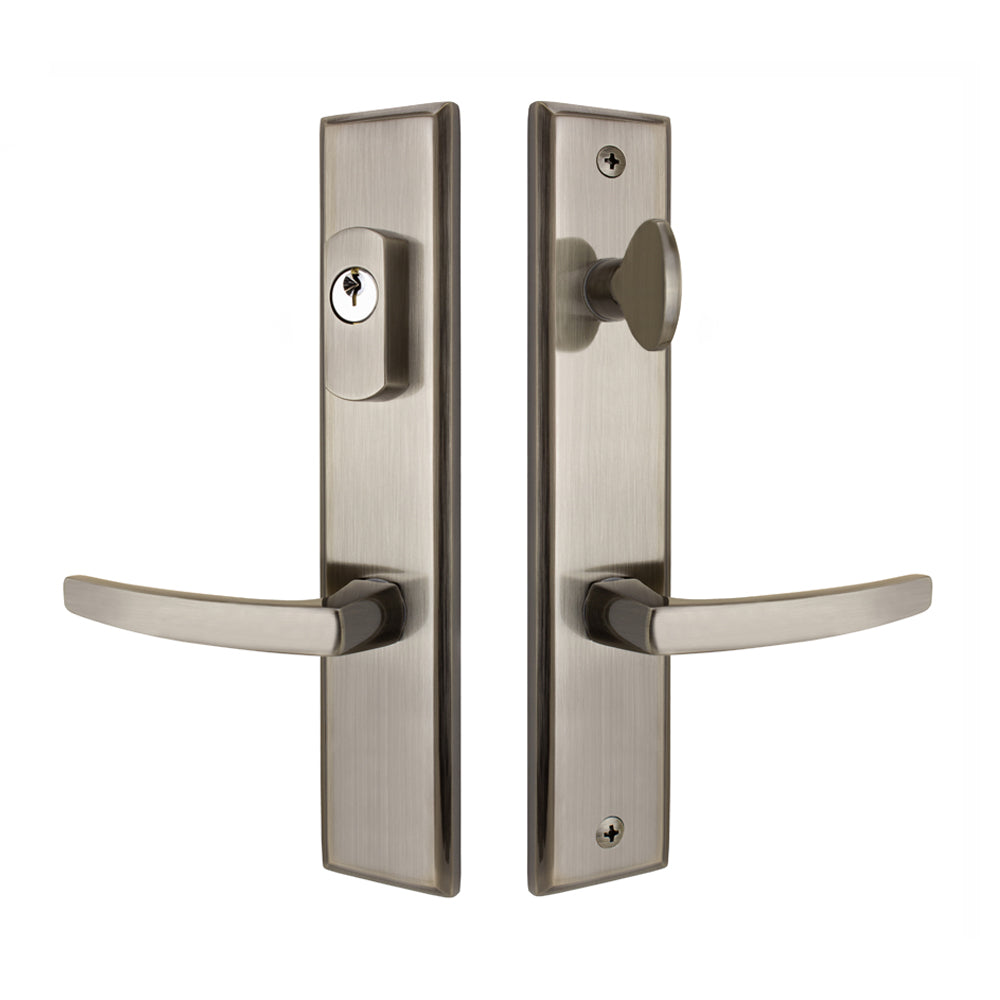

FPL Catalina Lock Set - Entry

$486.00

PRODUCT DESCRIPTION

FPL Catalina Lock Set - Entry

About this product:

FPL's Catalina Lock Set is made from solid brass and available in an array of fine finishes.

Most FPL items are in stock and will be ready to ship in 1-3 business days.

 Product Features:
  • Solid brass construction for durability and quality

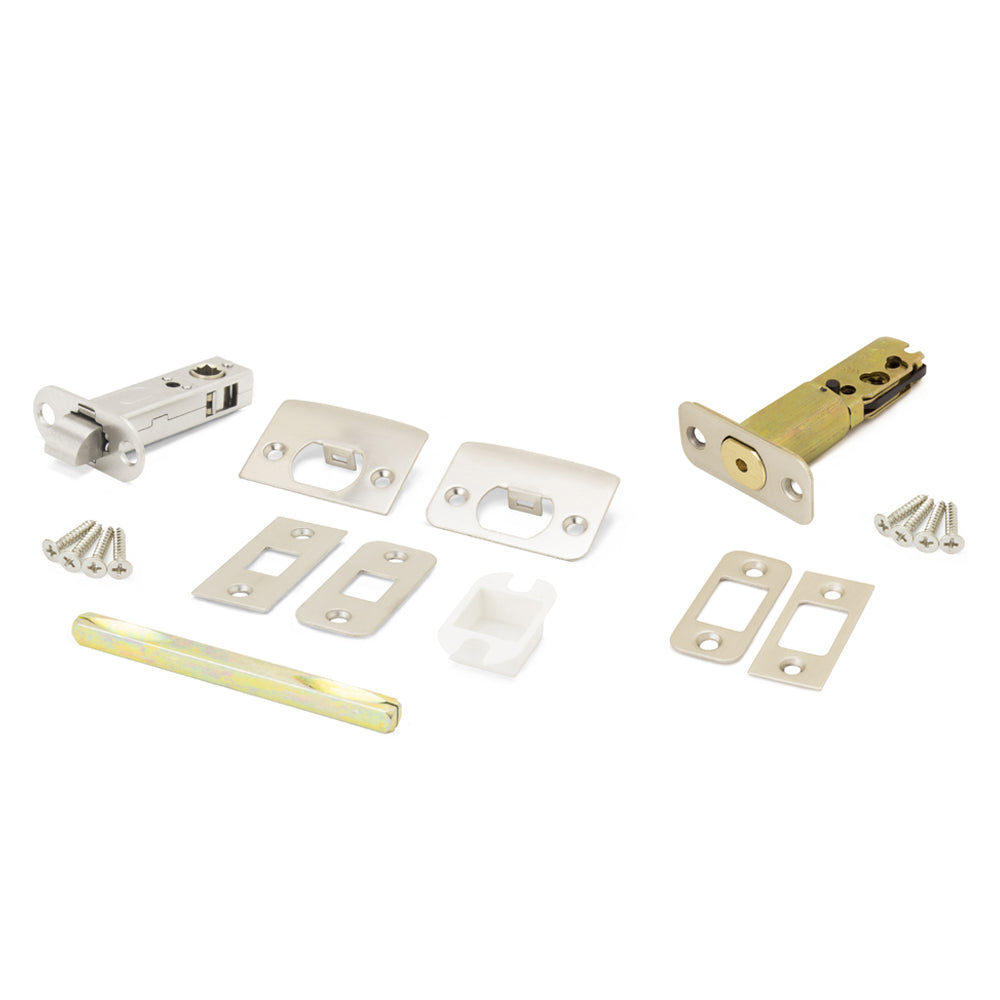

  • Complete set includes all necessary mounting hardware and accessories
  • Designed for 3-5/8" center-to-center (c-t-c) bore hole spacing
  • 1-3/8" deadbolt cross bore hole and 11/16" latch cross bore hole
  • 1" edge bore for passage and deadbolt latch
  • Features spring assist for optimal operational strength and lever return
  • Available finishes: Polished Brass (US3), Antique Brass (US5), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Polished Chrome (US26), Satin Chrome (US26D), Black (BPC), White (WPC), Lifetime Polished Brass (PVD), Rustic Distressed Brass (DB), Rustic Distressed Dark Bronze (DDB), Rustic Distressed Light Bronze (DLB), Rustic Distressed Nickel (DN)
  • Available lever styles: Athens, Bellagio, Catalina, Elena, Imperial, Luxor, Normandy, Piedmont, Riviera
  • California Residents Proposition 65 Warning



PRODUCT SPECS

FPL Catalina Lock Set - Entry

About this product:

The entry Catalina set features a key cylinder, key cylinder housing, thumbturn, deadbolt and passage latch. The deadbolt is retracted by a key on the outside or the thumbturn on the inside. The passage latch is retracted by the motion of a lever. The Catalina style is also available in the privacy (locks/unlocks with a privacy pin on the interior and can be unlocked from the exterior with the emergency release), passage (contains passage latch with no locking function) and dummy (contains no latch or locking function) functions. These items are listed separately.

 Product Specs:
  • Catalina Specification Sheet
  • Bore hole spacing: 3-5/8" center-to-center (c-t-c)
  • Cross bore: 1-3/8" for deadbolt, 11/16" for latch
  • Edge bore: 1"
  • Door thickness: 1-3/4" to 2-1/4"
  • Plate width: 1-3/4" (will not cover standard 2-1/8" cross bore hole)
  • Plate length: 9-1/8"
  • Plate thickness: 23/64"
  • 1" deadbolt throw
  • Steel spindle
  • Keyway: Schlage C
  • Keys: Each set includes 2 keys



INSTALLATION

FPL Catalina Lock Set - Entry

About this product:

The FPL entry Catalina lock set is designed for a 1-3/8" cross bore hole for the deadbolt, a 11/16" cross bore hole for the latch, and a 1" edge bore. This narrow plate lever set requires a deadbolt to latch spacing of 3-5/8" center-to-center (c-t-c).

 Product Installation:



ORDER HELP

Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" menu tab above for more information.

Keying information: If you want to order a set that will work with your existing key, it is important to order the same type of key cylinder, because the keys are not interchangeable. For example, a Schlage C key cannot fit into a Weiser WR5 key cylinder. In addition to matching the key cylinder type, you must also match the key code. If you need assistance in determining your key cylinder type or your key code please take your key to a locksmith or key copy center.

We also offer the option of ordering sets that are “keyed alike” or “keyed different”. “Keyed alike” means that all sets ordered together will operate with the same key. “Keyed different” means that each set ordered together will operate with its own unique key. If you are ordering multiple keyed products, such as two of the same product with different options or two different products, please include a note with any keying instructions on the Shopping Cart page.
