FPL Catalina Sliding Door Lock - Keyed (California Classics Replacement)

$1,352.00

PRODUCT DESCRIPTION

FPL Catalina Sliding Door Lock - Keyed
(California Classics Replacement)

About this product:

FPL's Catalina keyed sliding door lock set is made from solid brass and available in an array of popular finishes. This version is designed as a full replacement for the old California Classics sliding door locks, and replaces the original lock mechanism and trim. The included FPL 560 lock mechanism is the only compatible replacement option that fits the original California Classics door milling. Please see the 'Old Cal Classics Specs' tab to ensure that you have the old style lock set before ordering a replacement. The FPL 560 lock mechanism can also be paired with the Ambassador trim style for a traditional trim option.

Most FPL items are in stock and will be ready to ship in 1-3 business days.

 Product Features:
  • Solid brass construction for durability and quality
  • Complete set includes all necessary mounting hardware and accessories
  • Available finishes: Polished Brass (US3), Antique Brass (US5), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Polished Chrome (US26), Satin Chrome (US26D), Black (BPC), White (WPC), Lifetime Polished Brass (PVD), Rustic Distressed Brass (DB), Rustic Distressed Dark Bronze (DDB), Rustic Distressed Light Bronze (DLB), Rustic Distressed Nickel (DN)
  • FPL offers a Lifetime Limited Mechanism Warranty to the original user
  • California Residents Proposition 65 Warning



PRODUCT SPECS

FPL Catalina Sliding Door Lock - Keyed
(California Classics Replacement)

About this product:

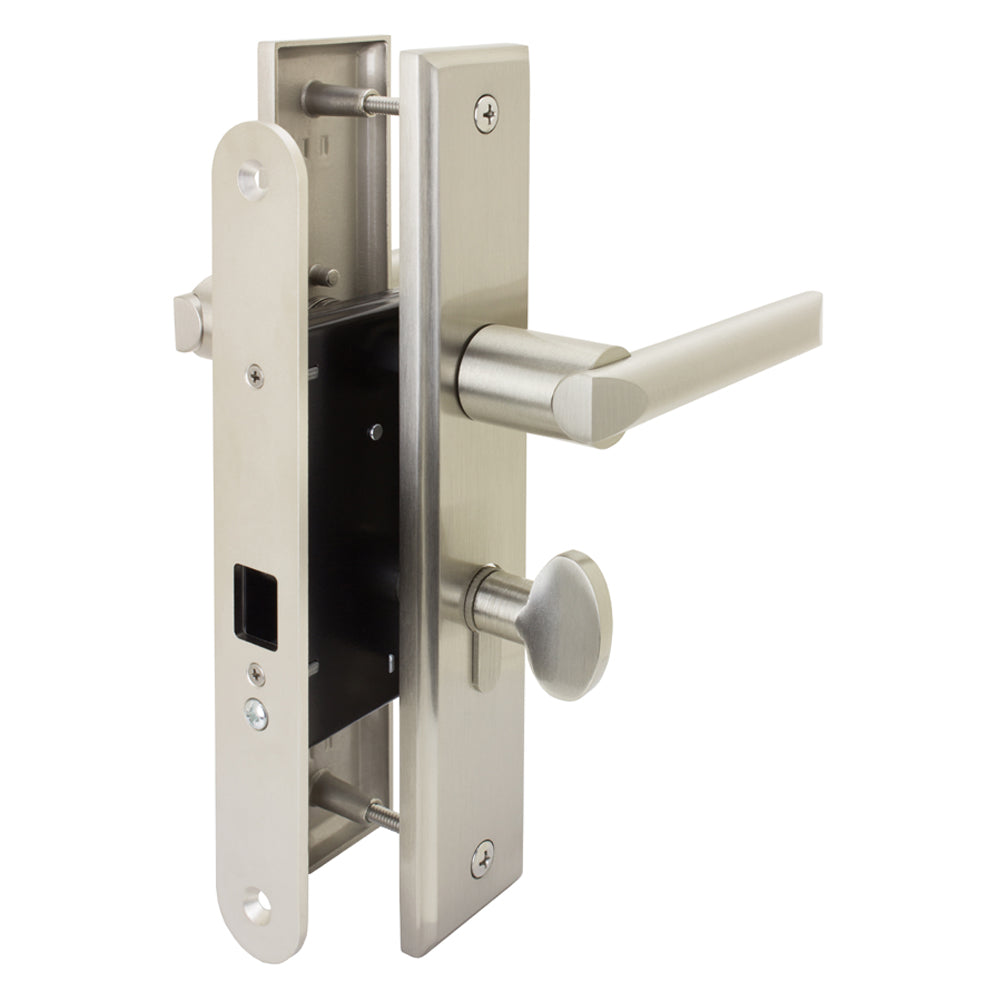

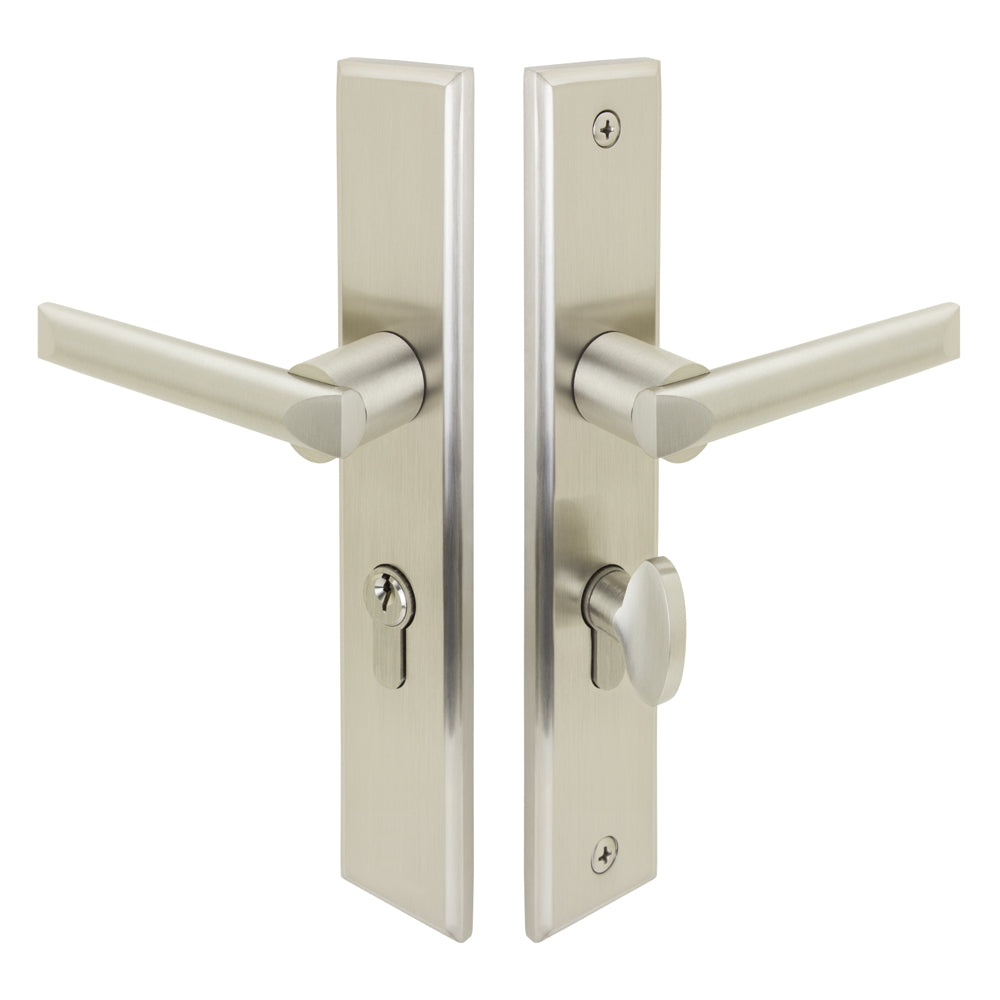

FPL's Catalina keyed sliding door lock set includes a European key cylinder with thumb turn, and the 560 mortise mechanism that is specifically designed to replace original California Classics sliding door hardware. The single keyed function locks/unlocks the mechanism by a key on the outside or the thumbturn on the inside. This Catalina style is also available in the double keyed (locks/unlocks with a key on the outside and on the inside) and patio (locks/unlocks with the thumbturn on the inside only) functions specifically for replacing original California Classics sliding door sets. It is also available in the dummy (used on the inactive door when two sliding doors meet in the middle) function. These items are listed separately.

 Product Specs:
  • Catalina Trim Specification Sheet
  • 560 Mortise Mechanism Specification Sheet
  • Trim plate screw hole spacing: 7-11/16" center-to-center (c-t-c)
  • Plate width: 1-3/4"
  • Plate length: 9-1/8"
  • Projection from door face: 1-53/64"
  • Backset: 50mm
  • Lever to cylinder spacing: 59mm center-to-center (c-to-c)
  • Door thickness: 1-3/4" to 2-1/4"
  • Keyway: Schlage C
  • Keys: Each set includes 2 keys

Old California Classics checklist:

Use this checklist to ensure you have the old style lock before ordering a replacement. (Also see "Old Cal Classics Specs" tab)

    • 1" threaded round mortise cylinder
    • Lever below cylinder
    • 3-1/2" cylinder to lever center-to-center (c-t-c)
    • 8-1/4" mechanism front plate with receiver





    OLD CAL CLASSICS SPECS

    Old Cal Classics Specs



    INSTALLATION

    FPL Catalina Sliding Door Lock - Keyed
    (California Classics Replacement)

    About this product:

    The Catalina (California Classics Replacement) sliding door lock set is designed for easy installation. No modification to the original door milling is needed. Thru-bolt mounted plates install with the included screws.

     Product Installation:
    • Installation Diagram
    • Thru-bolt mounted plates with included screws. Surface mounted plates are available upon request.
    • No modification to original door milling



    ORDER HELP

    Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. FPL also offers customization, including split finish options, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" menu tab above for more information.

    Keying information: If you want to order a set that will work with your existing key, it is important to order the same type of key cylinder, because the keys are not interchangeable. For example, a Schlage C key cannot fit into a Weiser WR5 key cylinder. In addition to matching the key cylinder type, you must also match the key code. If you need assistance in determining your key cylinder type or your key code please take your key to a locksmith or key copy center.

    We also offer the option of ordering sets that are “keyed alike” or “keyed different”. “Keyed alike” means that all sets ordered together will operate with the same key. “Keyed different” means that each set ordered together will operate with its own unique key. If you are ordering multiple keyed products, such as two of the same product with different options or two different products, please include a note with any keying instructions on the Shopping Cart page.
