FPL Malibu Sliding Door Handle - Patio

$638.40

PRODUCT DESCRIPTION

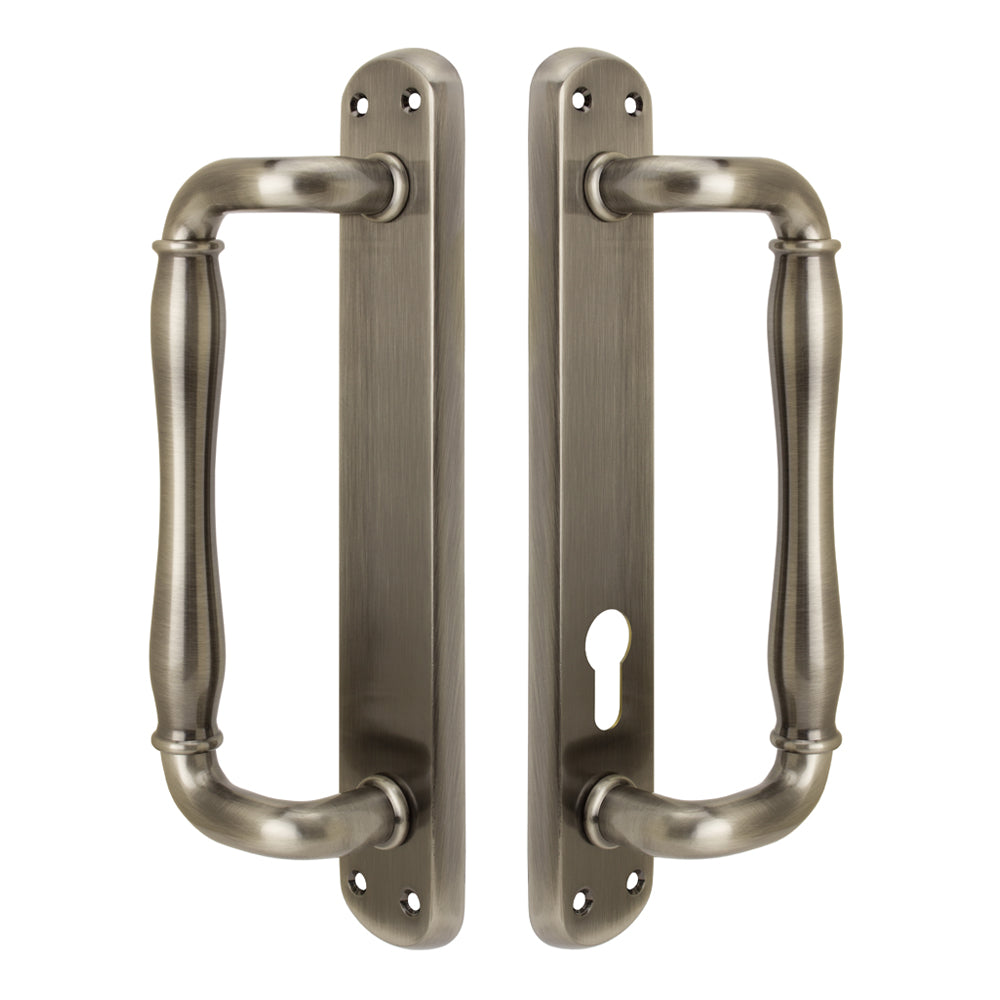

FPL Malibu Patio Sliding Door Handle

About this product:

FPL's patio Malibu sliding door handle is made from solid brass and available in an array of popular finishes. FPL also offers customization, including split finish options, allowing you to create hardware uniquely suited to your home. Please feel free to contact us, we would be happy to assist with customization beyond what is offered here. Most FPL items are in stock and will be ready to ship in 1-3 business days.

 Product Features:



PRODUCT SPECS

FPL Malibu Patio Sliding Door Handle

About this product:

Malibu Dimensions

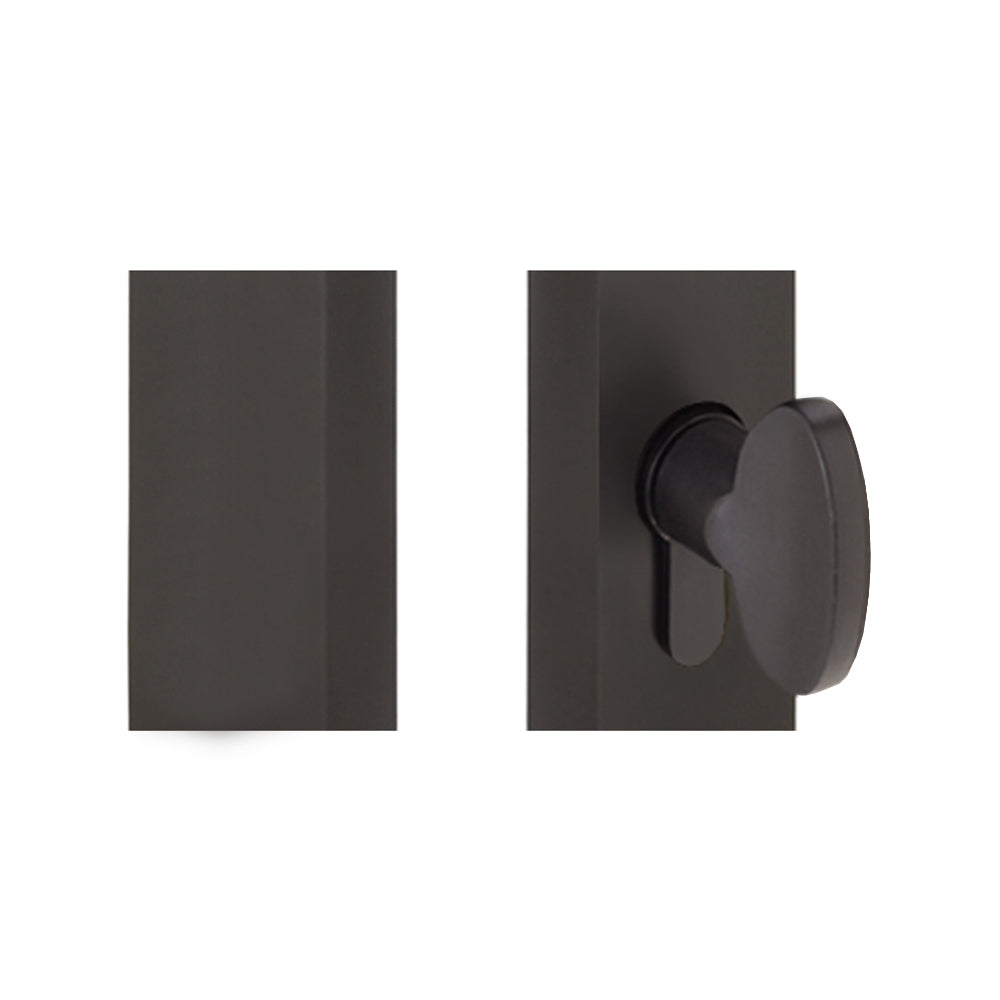

The Malibu patio sliding door handle set is used along with a Euro profile cylinder. The optional finish-matched cylinder allows for locking/unlocking by a thumbturn on the inside. The patio function does not include a method of locking/unlocking the door from the outside. The Malibu style is also available in the keyed (locks/unlocks with a key on the outside and a thumbturn on the inside), dummy (used on the inactive door of double sliding doors) and half dummy (one sided contains no locking mechanism) functions. These items are listed separately.

 Product Specs:
  • Malibu Specification Sheet
  • Screw hole spacing: 8-1/2" center-to-center (c-t-c)
  • Plates surface mount with finish-matched wood screws
  • Door thickness: 1-1/2" to 2-1/4"
  • Plate width: 1-5/8"
  • Plate length: 9-13/16"
  • Projection from door face: 2-1/8"

Optional Cylinders:

  • Standard Half Profile Cylinder - #025HT37
  • Door thickness: 1-3/4" to 2"
  • Standard Half Profile Cylinder - #025HT41
  • Door thickness: 2-1/4"

Please note that FPL offers custom cylinders and will assemble according to any offset size; down to the exact millimeter. Please contact us to design your custom cylinder! Contact information can be found in the "Support" tab above.

OPTIONAL MORTISE LOCK SPECS

FPL Malibu Keyed Sliding Door Handle

The Malibu keyed slider pairs with the optional 559-50 Pull to Open Sliding Mortise Lock Mechanism.

 #559 Mechanism Dimensions

 Product Specs:
  • 559-50 Specification Sheet
  • Backset: 50mm
  • Mechanism will latch when closed and unlatch automatically when door is pulled upon.
  • Euro profile cylinder is used to lock/unlock the function of the latch.
  • Euro profile cylinder is secured with cylinder screw through edge of mortise lock
  • See Specification Sheet to determine lock body milling requirements.


INSTALLATION

FPL Malibu Patio Sliding Door Handle

About this product:

The Malibu patio sliding door handle set is designed for easy surface mount installation using included finish-matched wood screws.

 Product Installation:
  • Surface mount plates with included finish-matched screws
  • See "Optional Mortise Lock Specs" tab for mortise lock mechanism installation
