FPL Monterey Sliding Door Lock - Keyed

$835.00

PRODUCT DESCRIPTION

FPL Monterey Sliding Door Lock - Keyed

About this product:

From the FPL Classic Collection, the Monterey keyed sliding door lock is made from solid brass and available in a variety of popular finishes. Most FPL items are in stock and will be ready to ship in 1-3 business days.

 Product Features:
  • Solid brass construction for durability and quality
  • Solid brass mechanism faceplate
  • Complete set includes all necessary mounting hardware and accessories
  • Available finishes: Polished Brass (US3), Antique Brass (US5), Satin Nickel (US15), Pewter (US15A), Polished Chrome (US26), Satin Chrome (US26D), Rustic Distressed Brass (DB), Rustic Distressed Dark Bronze (DDB), Rustic Distressed Light Bronze (DLB), Rustic Distressed Nickel (DN)
  • Available lever styles: Athens, Bellagio, Catalina, Elena, Imperial, Luxor, Normandy, Piedmont, Plaza, Riviera
  • Available knob styles: Egg
  • FPL offers a Lifetime Limited Mechanism Warranty to the original user
  • California Residents Proposition 65 Warning



PRODUCT SPECS

FPL Monterey Sliding Door Lock - Keyed

About this product:

FPL Monterey Slider & 558 Specs

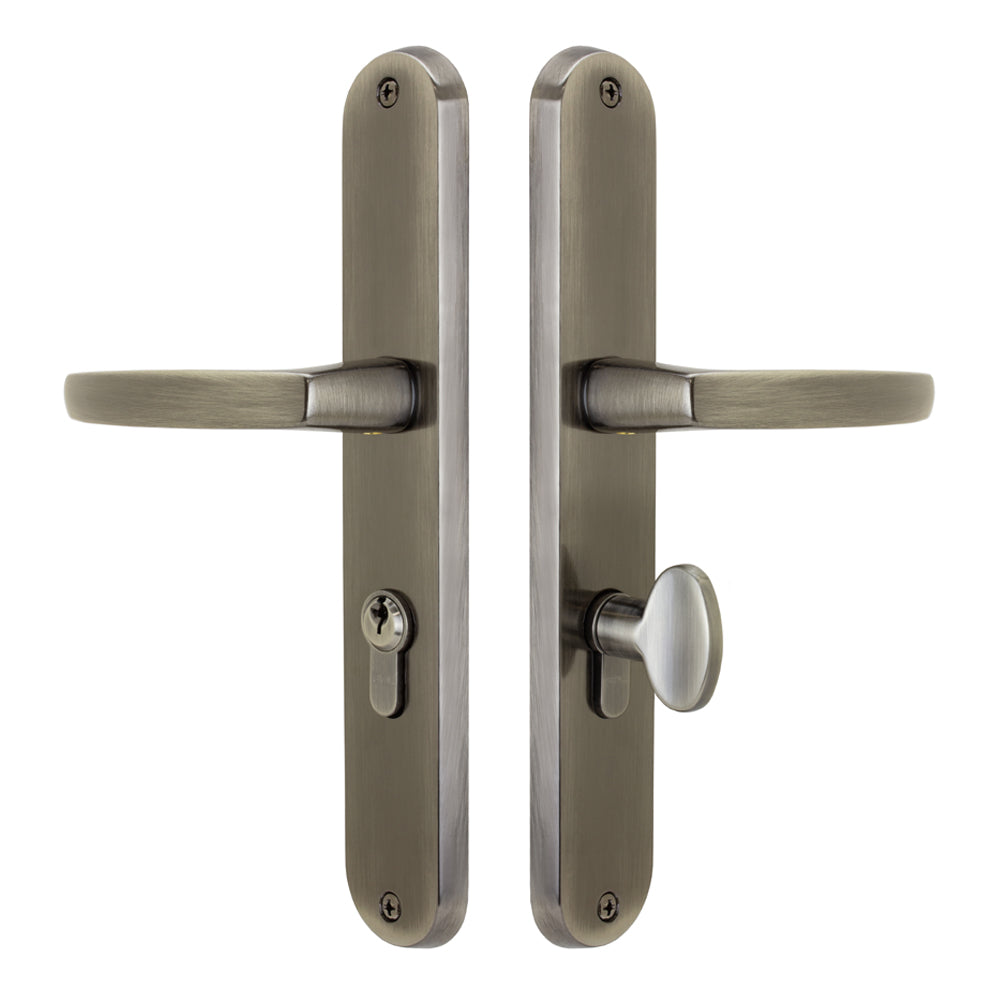

The Monterey keyed sliding door lock features a European key cylinder, thumbturn, and the 558-50 mortise mechanism. The mechanism is retracted by a key on the outside or the thumbturn on the inside. The Monterey style is also available in the patio (locks/unlocks with a thumbturn on the inside only) and dummy (used on the inactive door when two sliding doors meet in the middle) functions. These items are listed separately.

 Product Specs:
  • Monterey Trim Specification Sheet
  • 558-50 Specification Sheet
  • Screw hole spacing: 8-3/8" center-to-center (c-t-c)
  • Door thickness: 1-3/4" to 2-1/4"
  • Plate width: 1-5/16"
  • Plate length: 9-19/64"
  • Backset: 50mm
  • Keyway: Schlage C
  • Keys: Each set includes 2 keys
  • To open, press down on lever to disengage mechanism from strike, then use lever as a pull to slide your door open
  • To close, with the sliding door closed, locking the profile cylinder secures the door by keeping the lever from operating



INSTALLATION

FPL Monterey Sliding Door Lock - Keyed

About this product:

The Monterey sliding door lock set is designed for easy installation. Surface mount plates install with included finish-matched screws.

 Product Installation:



ORDER HELP

Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. FPL also offers customization, including split finish options, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" menu tab above for more information.

Keying information: If you want to order a set that will work with your existing key, it is important to order the same type of key cylinder, because the keys are not interchangeable. For example, a Schlage C key cannot fit into a Weiser WR5 key cylinder. In addition to matching the key cylinder type, you must also match the key code. If you need assistance in determining your key cylinder type or your key code please take your key to a locksmith or key copy center.

We also offer the option of ordering sets that are “keyed alike” or “keyed different”. “Keyed alike” means that all sets ordered together will operate with the same key. “Keyed different” means that each set ordered together will operate with its own unique key. If you are ordering multiple keyed products, such as two of the same product with different options or two different products, please include a note with any keying instructions on the Shopping Cart page.
