Not all finish and hardware combinations are shown. Images may represent style only.
FPL Hardware

Royal Lock Set - Privacy

$122.00

PRODUCT DESCRIPTION

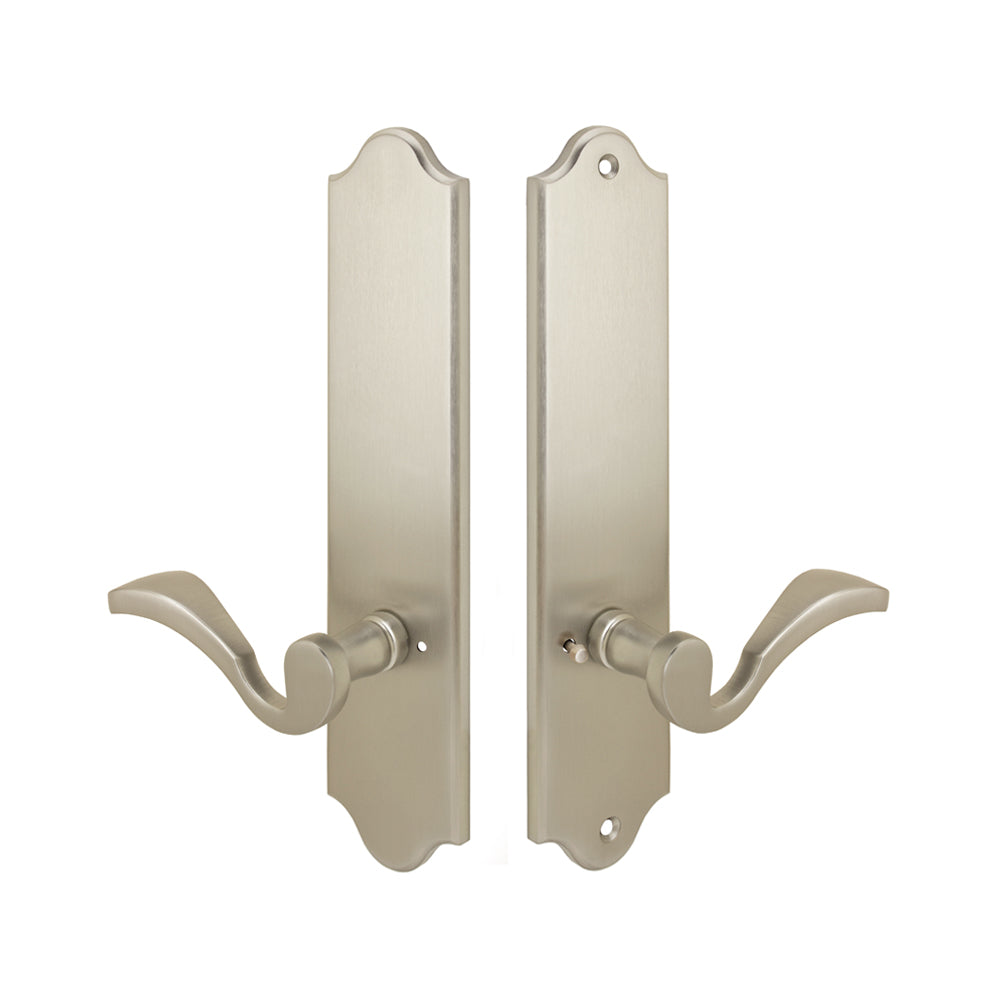

FPL Privacy Royal Lock Set

About this product:

FPL's privacy Royal lock set is available in an array of popular finishes. Most FPL items are in stock and will be ready to ship in 1-3 business days.

 Product Features:
  • Zinc Die-Cast construction for attractive design and pricing

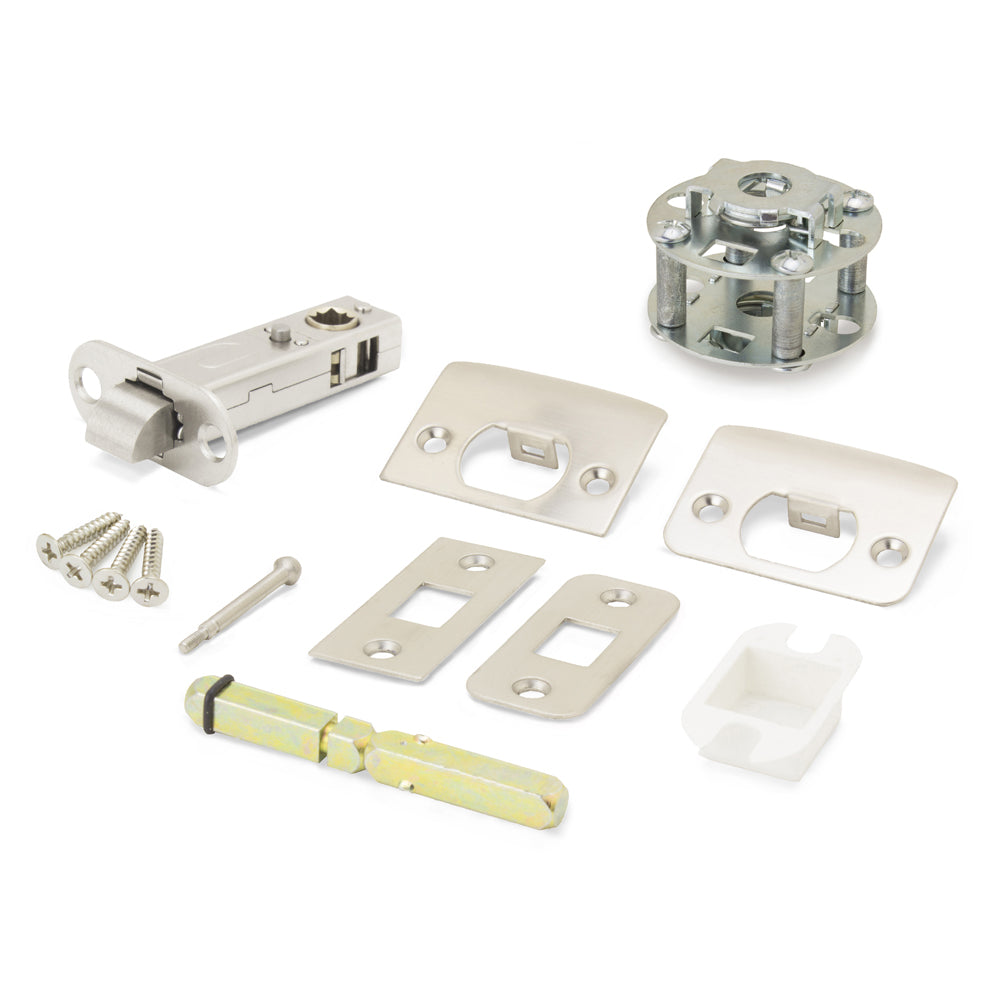

  • Complete set includes all necessary mounting hardware and accessories
  • Standard 2-1/8" cross bore and 1" edge bore for privacy latch
  • Accommodates 1-3/8" to 1-3/4" door thickness
  • Features easy-to-install spring assist for optimal operational strength
  • Available finishes: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Polished Chrome (US26), Satin Chrome (US26D), White (WPC), Lifetime Polished Brass (PVD)
  • California Residents Proposition 65 Warning



PRODUCT SPECS

FPL Privacy Royal Lock Set

About this product:

FPL Royal Privacy Lever Set Specs

The Royal privacy set features a privacy pin on the interior and can be unlocked from the exterior with the emergency release. The Royal style is also available in the entry (locks/unlocks with a deadbolt), passage (contains passage latch with no locking function) and dummy (contains no latch or locking function) functions. These items are listed separately.

 Product Specs:
  • Royal Specification Sheet
  • Cross bore: 2-1/8"
  • Edge bore: 1"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Plate width: 2-7/16"
  • Plate length: 11-1/16"
  • Projection from door face: 2-1/2"



INSTALLATION

FPL Privacy Royal Lock Set

About this product:

The FPL privacy Royal lock set is designed for easy installation using standard 2-1/8" cross bore holes and 1" edge bore door prep.

 Product Installation:
