FPL Hardware

Status Deadbolt - Double Cylinder

$89.42

$38.09

PRODUCT DESCRIPTION

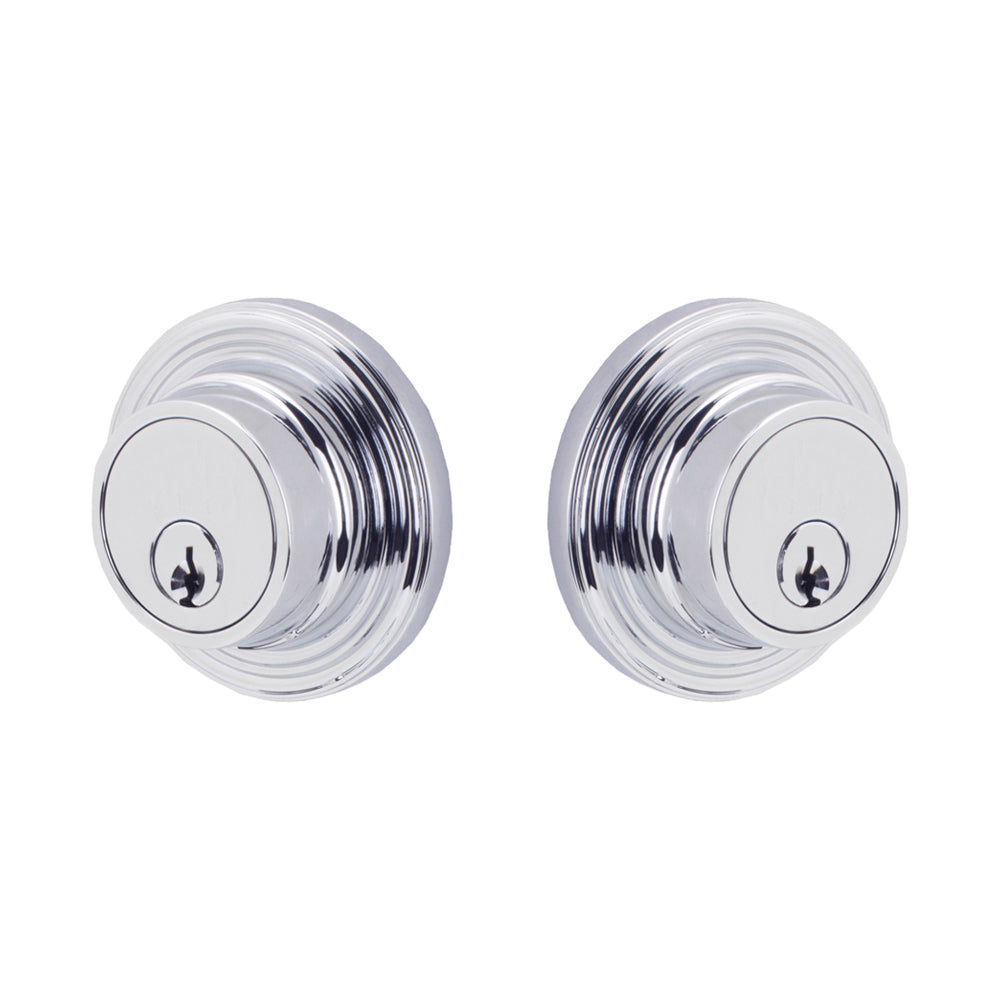

FPL Status Double Cylinder Deadbolt

About this product:

FPL's Status double cylinder deadbolt is made of solid brass and saw-proof steel inner core for durability and security. It is available in an array of popular finishes. Most FPL items are in stock and will be ready to ship in 1-3 business days.

 Product Features:
  • Solid brass construction for durability and quality
  • Easy installation designed for standard 2-1/8" cross bore door prep
  • Complete set includes all necessary mounting hardware and accessories
  • Available finishes: Antique Brass (US5), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Satin Chrome (US26D), Black (BPC), Lifetime Polished Brass (PVD)
  • California Residents Proposition 65 Warning



PRODUCT SPECS

FPL Status Double Cylinder Deadbolt

About this product:

Double Cylinder Graphic

The Status double cylinder deadbolt features a solid brass bolt and saw-proof steel inner core for durability and security. The deadbolt is retracted by both a key on the outside and on the inside. The Status deadbolt is also available in the single cylinder (locks/unlocks with a key on the outside and a thumbturn on the inside) and patio (locks/unlocks with a thumbturn on the inside only) functions. These items are listed separately.

 Product Specs:
  • Status Specification Sheet
  • Double Cylinder Deadbolt Specification Sheet
  • Cross bore: 2-1/8"
  • Edge bore: 1"
  • Backset: 2-3/8" (60mm) or 2-3/4" (70mm)
  • Door thickness: 1-3/8" to 1-3/4"
  • Exterior projection: 1"
  • Interior projection: 1"
  • Latch: Mortised tubular latch is standard
  • Latch faceplate and strike: Square corner
  • Keyway: Schlage C
  • Keys: Each set includes 2 keys



INSTALLATION

FPL Status Double Cylinder Deadbolt

About this product:

The Status double cylinder deadbolt is designed for easy installation using standard 2-1/8" cross bore and 1" edge bore door prep.

 Product Installation:



ORDER HELP

Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" menu tab above for more information.

Keying information: If you want to order a set that will work with your existing key, it is important to order the same type of key cylinder, because the keys are not interchangeable. For example, a Schlage C key cannot fit into a Weiser WR5 key cylinder. In addition to matching the key cylinder type, you must also match the key code. If you need assistance in determining your key cylinder type or your key code please take your key to a locksmith or key copy center.

We also offer the option of ordering sets that are “keyed alike” or “keyed different”. “Keyed alike” means that all sets ordered together will operate with the same key. “Keyed different” means that each set ordered together will operate with its own unique key. If you are ordering multiple keyed products, such as two of the same product with different options or two different products, please include a note with any keying instructions on the Shopping Cart page.

 Order Help:
