Not all finish and hardware combinations are shown. Images may represent style only.

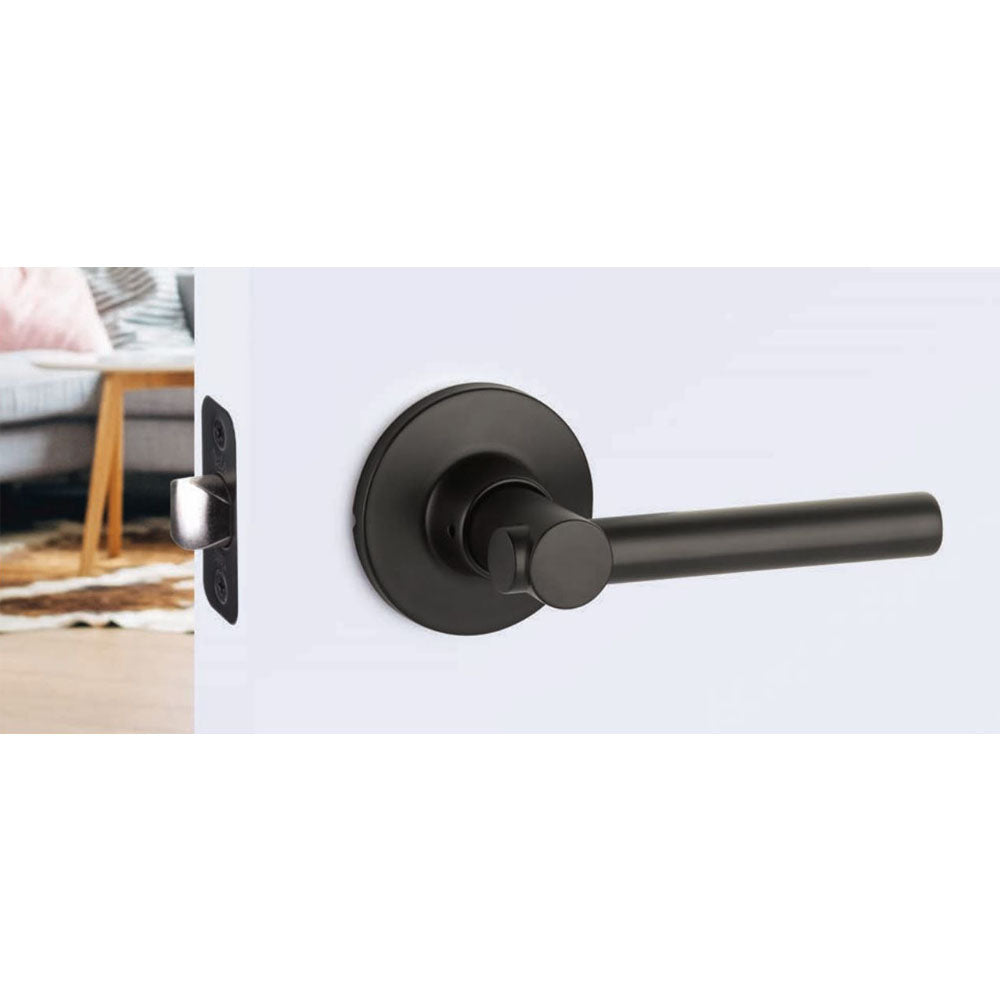

Yale Holden Lever Set - Passage

$40.21

PRODUCT DESCRIPTION

Yale Holden Lever Set - Passage

About this product:

From the Yale Expressions series, the Marcel series highlights clean shapes, perpendicular lines, and contemporary forms. Versatile enough for a mid-century modern ranch home or a century old craftsman bungalow, the Holden lever delivers a fresh look with smooth, reliable action. We would be happy to assist with customization beyond what is offered here. Split finish and split style sets are also available. Give us a call to design your custom set.

All Yale Expression items are typically ready to ship in 2-3 business days. Orders requiring keying will extend the lead-time 1-2 days. Please note that the estimated delivery times do not include the product handling times. If you are ordering products that have different handling times, the order will ship complete based on the longest handling time. If you want your products to ship separately, please contact us.

Yale Expressions is a collection of door hardware that offers homeowners an elevated look at an affordable price. For more information please visit the manufacturer's page.

 Product Features:
  • Yale Holden product page
  • Designed to meet Grade 3 standards for value and security
  • Complete set includes all necessary mounting hardware and accessories
  • Easy installation designed for standard 2-1/8" cross bore door prep and 1" edge bore for latch
  • Exposed mounting screws on interior rosette

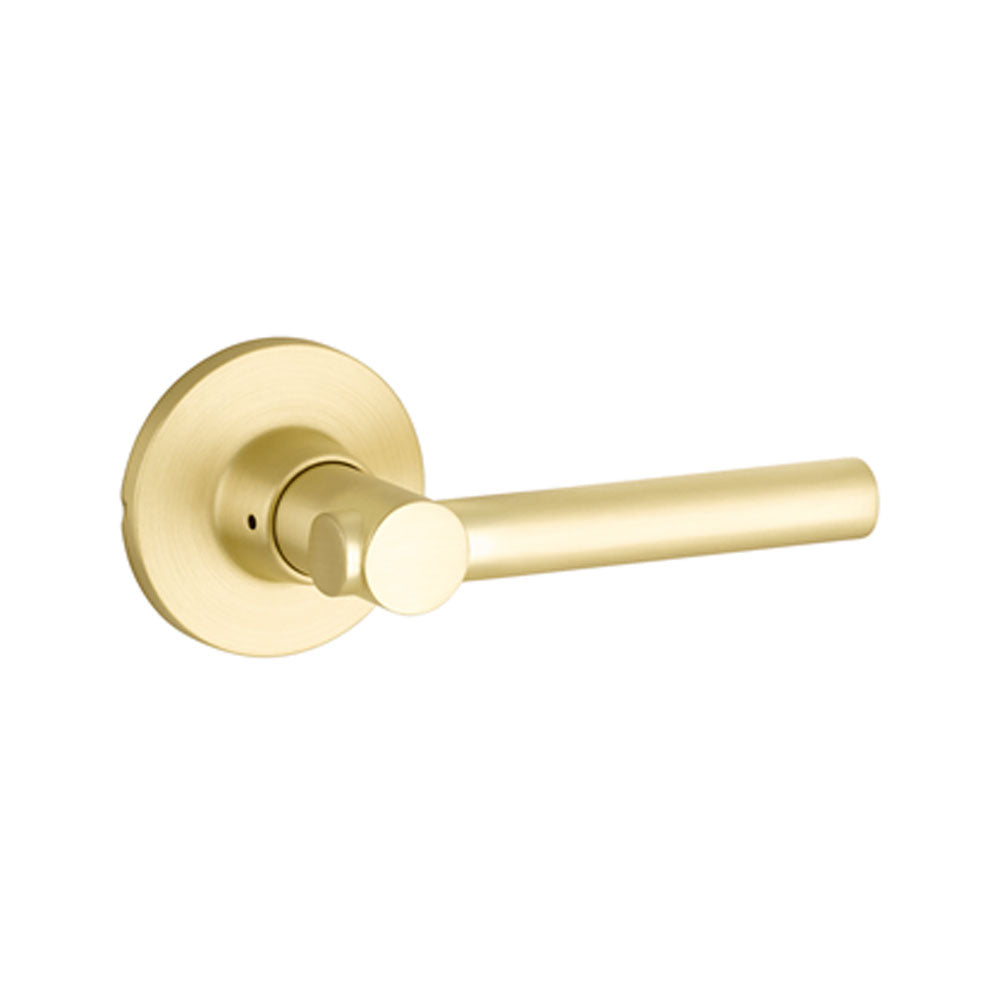

  • Available finishes: Satin Brass (US4), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26)
  • Yale offers a Limited Lifetime Mechanical and Five-Year Finish Warranty to the original user
  • California Residents Proposition 65 Warning



PRODUCT SPECS

Yale Holden Lever Set - Passage

About this product:

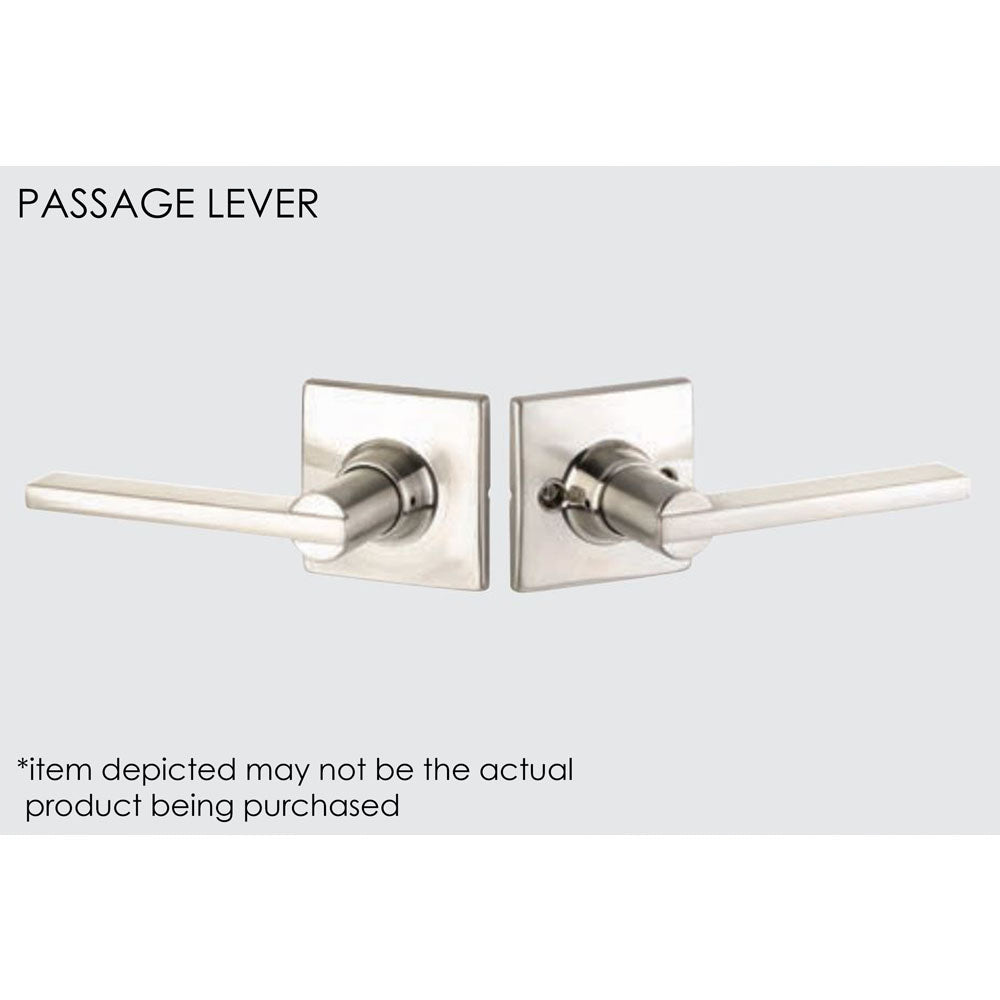

Passage Lever Set Graphic

The Holden passage lever set features a passage latch but contains no locking function. The passage latch is retracted by the motion of a lever. The Holden lever is also available in the entry (locks/unlocks with a key on the outside and a push-button on the inside), privacy (locks/unlocks with a turn piece on the interior and can be unlocked from the exterior with the emergency egress) and dummy (contains no latch or locking function) functions. These items are listed separately.

 Product Specs:
  • Holden with Marcel Rosette Specification Sheet
  • Holden with Owen Rosette Specification Sheet
  • Cross bore: 2-1/8"
  • Edge bore: 1"
  • Door thickness: 1-3/8" to 1-3/4"
  • Universal handing: fits both right and left-handed doors
  • Projection: 2-1/2" (Marcel Rosette)
  • Projection: 2-1/4" (Owen Rosette)
  • Adjustable backset: 2-3/8" (60mm) or 2-3/4" (70mm)
  • Latch: Mortised tubular latch is standard (drive-in latch available on request)
  • Radius latch faceplate and strike
  • Lifetime mechanical / 5 year finish warranty



INSTALLATION

Yale Holden Lever Set - Passage

About this product:

The Holden passage lever set is designed for easy installation using standard 2-1/8" cross bore and 1" edge bore door prep.

 Product Installation:


ORDER HELP

Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. Please feel free to contact us for assistance. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" tab above for more information.

 Order Help:



INSPIRATION

In need of some inspiration? Take a look at these links:

 Inspiration:
