Yale

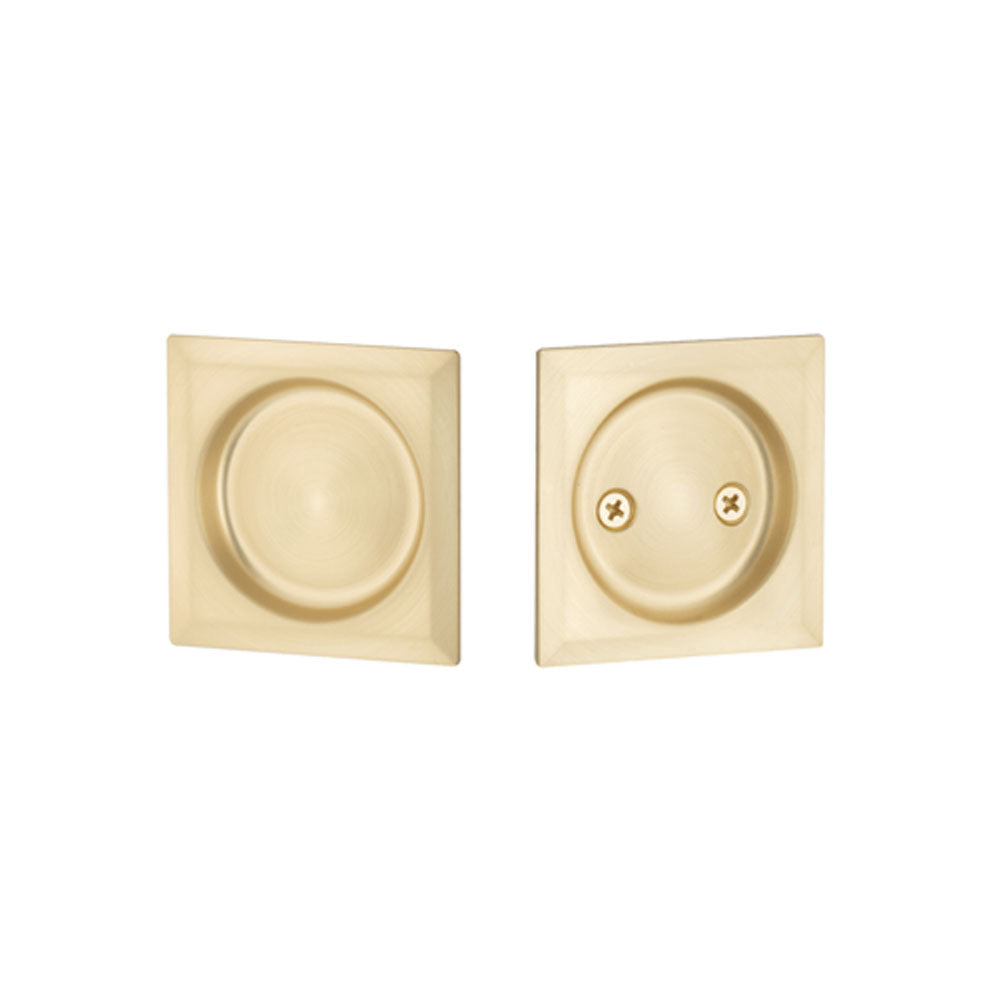

Square Tubular Pocket Lock - Passage

$31.98

PRODUCT DESCRIPTION

Yale Square Tubular Pocket Lock - Passage

About this product:

From the Yale Expressions series, the Square passage pocket lock softly complements interiors, provides a clean, modern look to your pocket doors, and is available in an array of popular finishes.

All Yale Expression items are typically ready to ship in 2-3 business days. Orders requiring keying will extend the lead-time 1-2 days. Please note that the estimated delivery times do not include the product handling times. If you are ordering products that have different handling times, the order will ship complete based on the longest handling time. If you want your products to ship separately, please contact us.

Yale Expressions is a collection of door hardware that offers homeowners an elevated look at an affordable price. For more information please visit the manufacturer's page.

 Product Features:
  • Yale Square Passage product page
  • Designed to meet Grade 3 standards for value and security
  • Complete set includes all necessary mounting hardware and accessories
  • Easy installation designed for standard 2-1/8" cross bore door prep and 1" edge bore for latch
  • Exposed mounting screws on interior
  • Available finishes: Polished Brass (US3), Satin Brass (US4), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26)
  • Yale offers a Limited Lifetime Mechanical and Five-Year Finish Warranty to the original user
  • California Residents Proposition 65 Warning



PRODUCT SPECS

Yale Square Tubular Pocket Lock - Passage

About this product:

Yale Square Tubular Passage Pocket Lock Specs

The Square passage pocket lock contains no latch or locking function and is typically used on inactive or hallway closet doors. The Square pocket lock is also available in the privacy (locks/unlocks with a thumb turn on the interior and can be unlocked from the exterior with the emergency egress) function. This item is listed separately.

 Product Specs:
  • Square Passage Specification Sheet
  • Cross bore: 2-1/8"
  • Edge bore: 1"
  • Door thickness: 1-3/8"
  • Width: 2-7/16"
  • Depth: 3/8"
  • Universal handing: fits both right and left-handed doors
  • Backset: 2-3/8" (60mm)
  • Latch: Mortised tubular latch is standard
  • Radius latch faceplate and strike
  • Lifetime mechanical / 5 year finish warranty



INSTALLATION

Yale Square Tubular Pocket Lock - Passage

About this product:

The Square passage pocket lock is designed for easy installation using standard 2-1/8" cross bore and 1" edge bore door prep.

 Product Installation:
